Carl Mk2
Carl Mk2

3-Way Active Speaker System


GALLERY
DETAILS


Carl Mk2
Description:
3-Way Active Speaker System
Amplifier:
Class D
Low Amplifier Power:
120W
Mid Amplifier Power:
80W
High Amplifier Power:
40W
Low Driver:
6"x9" + Dual 6.5’’ Passive Radiators

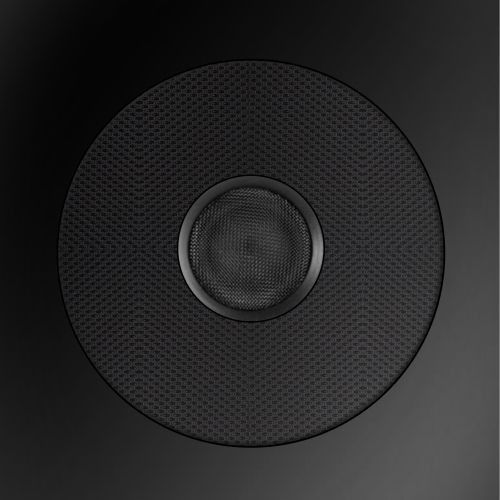

Mid Driver:
4"
High Driver:
1"
Frequency Response:
38Hz-22KHz
Crossover Frequency:
Low-Mid: 400Hz ,  Mid-High: 4KHz

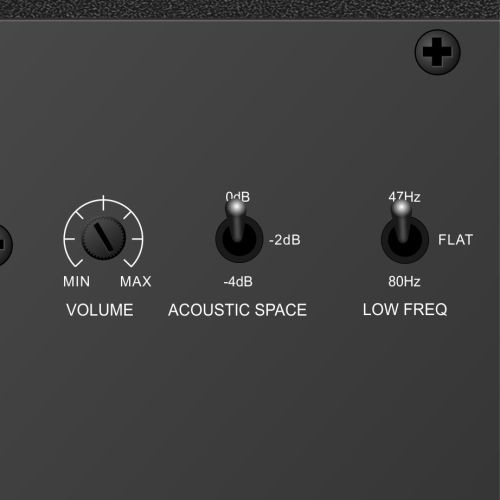

Acoustic Space:
 0dB, -2dB, -4dB
Low Frequency:
Flat, 47Hz, 80Hz

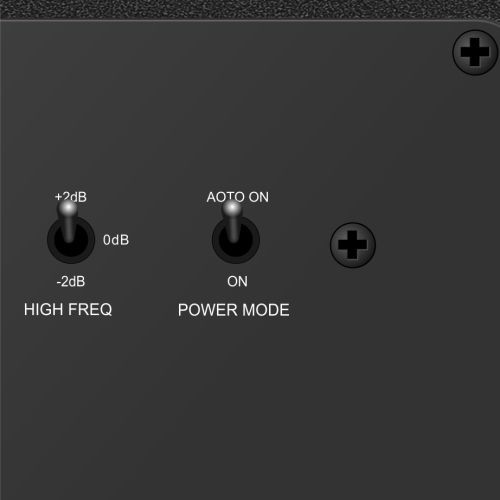

High Frequency:
-2dB, 0dB, +2dB

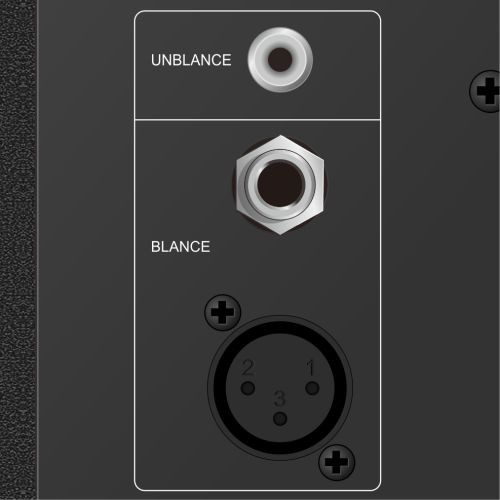

Input:
RCA, TRS, XLR
Standby Power:
<0.5W

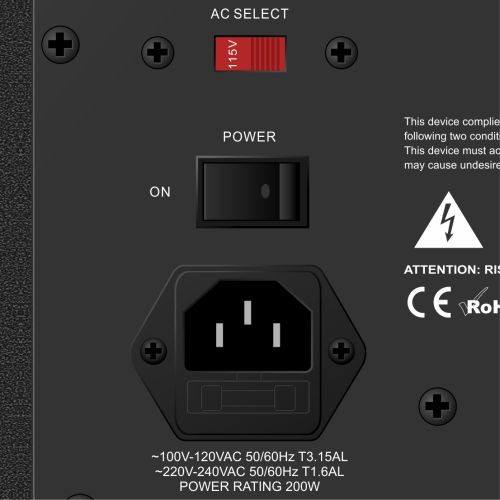

Voltage:
100-120V~, 50/60Hz or 220-240V~, 50/60Hz
Measurements:
W220xH320xD360mm

TECH SPECS
  • Description:
    3-Way Active Speaker System
  • Amplifier:
    Class D
  • Low Amplifier Power:
    120W
  • Mid Amplifier Power:
    80W
  • High Amplifier Power:
    40W
  • Low Driver:
    6"x9" + Dual 6.5’’ Passive Radiators
  • Mid Driver:
    4'
  • High Driver:
    1'
  • Frequency Response:
    38Hz-22KHz
  • Crossover Frequency:
    Low-Mid: 400Hz , Mid-High: 4KHz
  • Acoustic Space:
    0dB, -2dB, -4dB
  • Low Frequency:
    Flat, 47Hz, 80Hz
  • High Frequency:
    -2dB, 0dB, +2dB
  • Input:
    RCA, TRS, XLR
  • Standby Power:
    <0.5W
  • Voltage:
    100-120V~, 50/60Hz or 220-240V~, 50/60Hz
  • Measurements:
    W220xH320xD360mm
<
>
