BIO
Bluetooth Monitor Controller

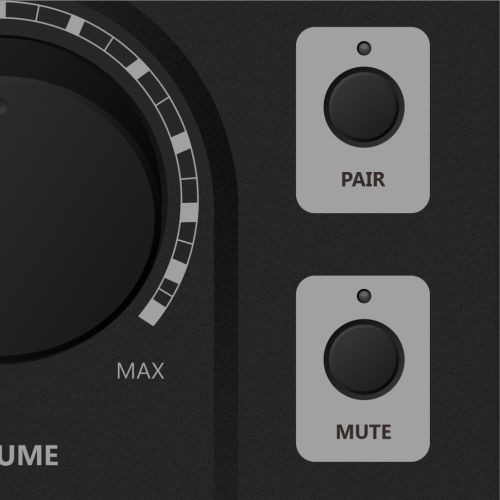

With the use of BIO, you can realize wireless connection on your studio monitors. Just pair your device by pressing the pair button on the front, and use your preferred connector to connect to your system.

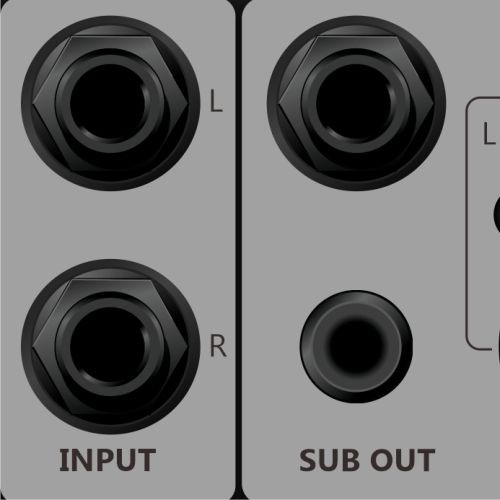

BIO includes various kinds of inputs and outputs to connect to your different devices. Balanced TRS inputs can be used to connect pro audio devices, such as your studio monitors or audio interface. A stereo AUX input is available to connect your phone when you don’t want to use Bluetooth.
With a subwoofer added, BIO also makes it easy to realize a 2.1 speaker system.
DETAILS
| Description: | Bluetooth Monitor Controller |
| Audio Inputs: | Main L/R Inputs | 1/4" Balanced TRS Active |
| Bluetooth Input | Bluetooth 5.1 |
| Aux Input | 1/8" Unbalanced TRS |
| Audio outputs: | Main Output | 1/4" Balanced TRS Active |
| XLR Balanced Active |
| Headphone/Aux output | 1/8" Unbalanced TRS, Stereo |
| Subwoofer output | 1/4" Balanced TRS |
| Unbalanced RCA |
| Power Supply Type: | USB-C™- compatible | DC 5V 2A |
TECH SPECS
-
Description:
Bluetooth Monitor Controller
-
Inputs:
TRS, Bluetooth, 3.5mm (AUX)
-
Outputs:
XLR, TRS, AUX / headphone, Sub out
-
Bluetooth version:
V5.1
-
Frequency Response:
20 Hz to 22 kHz
-
Power Supply Type:
DC 5V 2A
