Alpha 1000
Alpha 1000

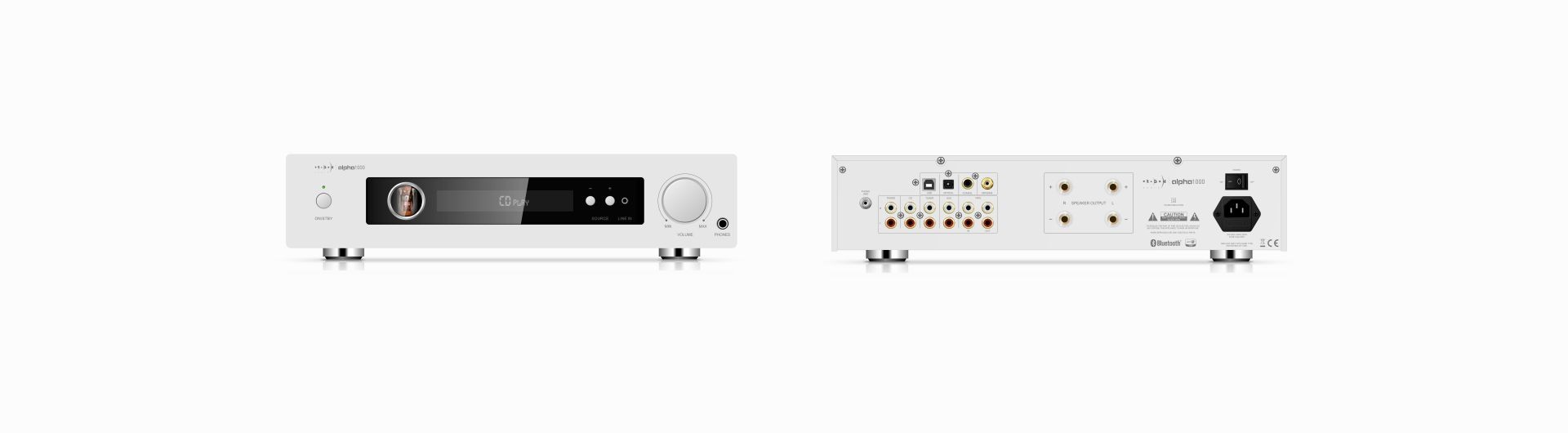

High-end hybrid integrated amplifier with tube preamplifier and transistor output stage

The high-quality Alpha 1000 stereo system is made up of two high-end modules. Each of the components provides outstanding quality in itself and, together, the two perfectly matched elements produce anacoustic performance that is simply unbeatable.

GALLERY
DETAILS

Preamplifier:

•      Low-noise tube preamplifier with 1 x ECC 88 tube

•      Preselected andburned-in (60 hours) tube

•      High-quality tube sockets

•      Input signal switching via high-quality reed relays

•      MM-phono preamplifier with low-noise operational amplifiers and subsonic filter

•      Digital inputs(optical and coaxial) for sampling frequencies up to 192kHz/24bits

•      USB 2.0 input supports sampling frequencies up to 192kHz/24bits

•      Bluetooth® 4.0,new high-end audio standard „aptX®“

•      Burr Brown digital-to-analogue converter

Poweramplifier and mains adapter:

•      Onehigh-performance power chip for each channel

•      Output power:70 watts of sine power per channel (4 ohms)

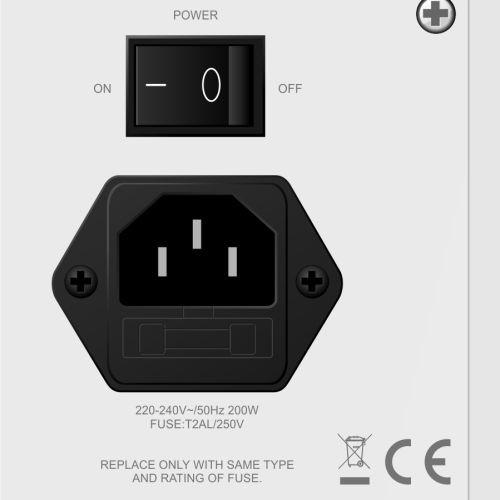

•       Elaborate mains adapter with separately stabilised supply voltage for the individual circuits

•      High-capacity filter/electrolytic capacitors

•      Generously dimensioned toroidal transformer

Housing,connectors and accessories:

•      Sturdy metal housing with 5 mm front panel

•      Solid aluminium control elements

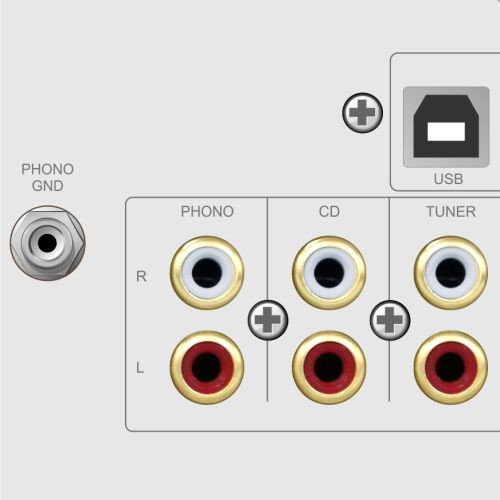

•      Phono MM input

•      Four high level inputs

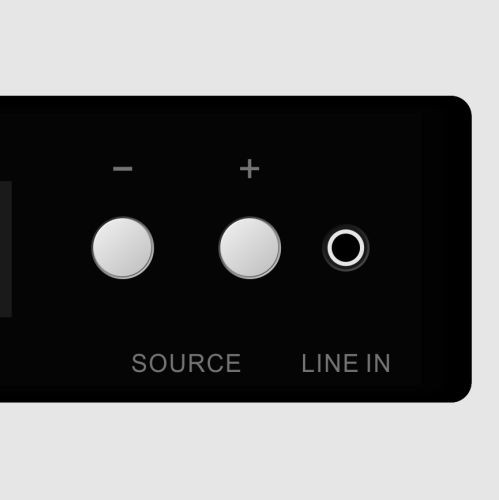

•      Additional 3.5mm audio input on the front panel for connecting portable devices

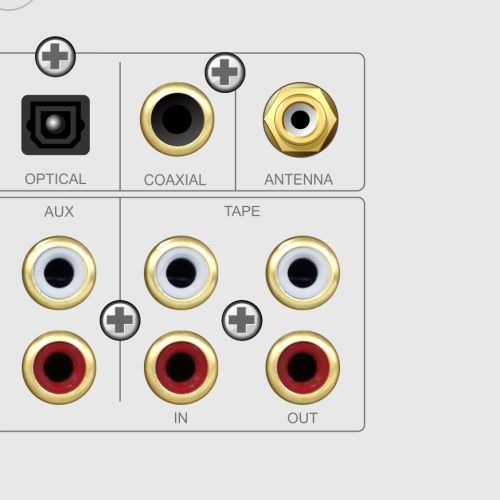

•      Digital inputs(optical and coaxial)

•      USB 2.0 input

•      Bluetooth® 4.0/ aptX® input

•      Record Outfixed level output

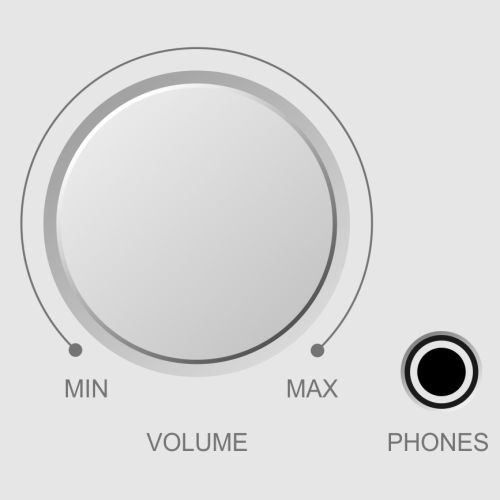

•      Headphone output with high-quality 6.3 mm jack

•      Easy,menu-driven operation

•      Remote control for all functions

•      Separate standby power supply for low power consumption in standby mode


TECH SPECS
  • Description:
    2 Channel integrated amplifier with tube preamplifier
  • Power output:
    60 Watts x 2 (into 8 Ohms) ; 80 Watts x 2 (into 4 Ohms)
  • Frequency Response:
    (-3dB)10HZ - 30kHz
  • S/N:
    >82dB @ 1W (Not A-Weight)
  • CD/Tuner/Aux/Line/Tape:
    >98dB (A-Weight)
  • PHONO:
    >82dB (A-Weight)
  • Analog Input/outputs:
    1x TUNER RCA input; 1x AUX RCA input; 1x TAPE RCA input; 1x 3.5mm audio input; 1x RECORD RCA output ; 1x 6.35mm audio output;
  • Digital Input:
    coaxial and optical
<
>
