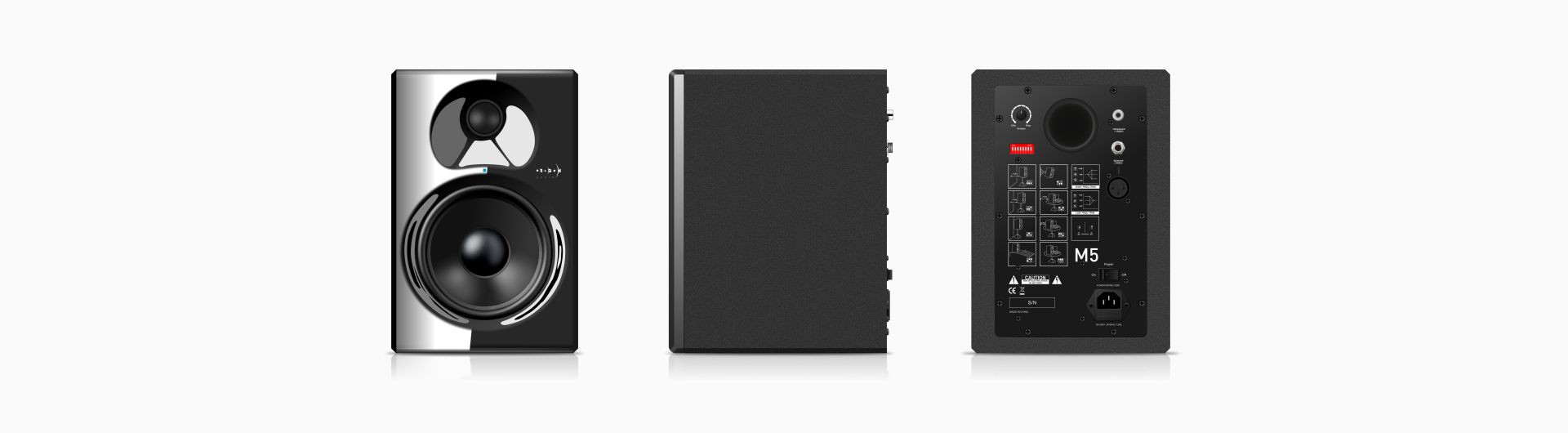

M5 / M6 / M8
M5 / M6 / M8

2 Way Bi-amplified Near-field Studio Monitor

M5/M6/M8 powered studio monitors, makes excellent performance available to every studio. With the refined transducers, they offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace.They delivers outstanding performance and an enjoyable mix experience.

GALLERY
DETAILS


M5M6M8
Description:2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor

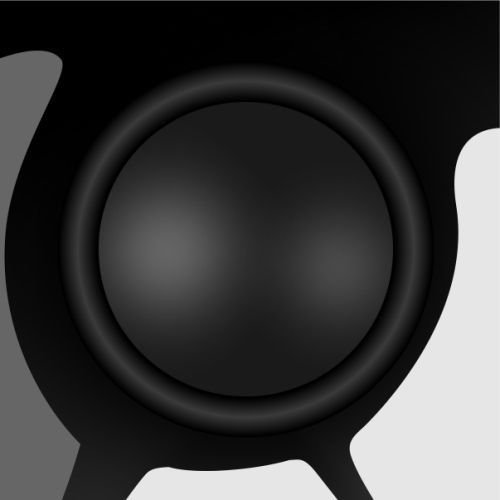

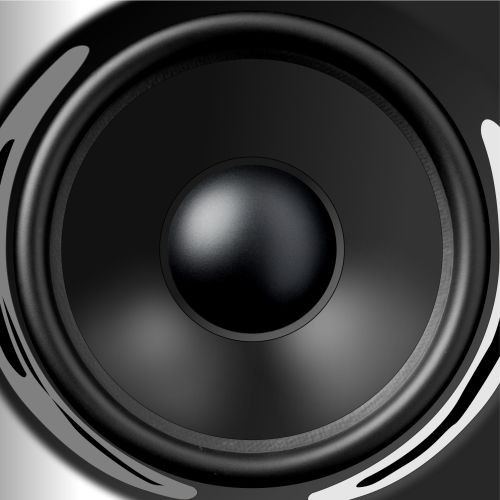

LF Driver:5.25" 6.5´´8´´
HF Driver:1´´1´´1´´
Frequency Response: 45 Hz - 25 kHz39 Hz - 25 kHz33 Hz - 25 kHz
Crossover Frequency:3.0KHz 2.6KHz 2.6KHz
LF Power AMP:50W Class D50W Class D70W Class D
HF Power AMP:30W Class D30W Class D30W Class D

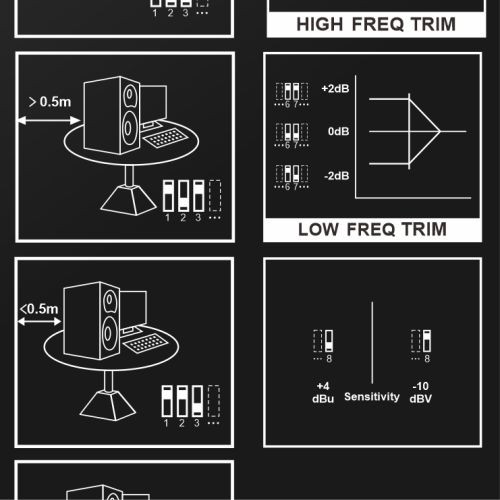

EQ settings:Free space (on stands, away from walls)Free space (on stands, away from walls)Free space (on stands, away from walls)
On stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wall
On stands, against a wallOn stands, against a wallOn stands, against a wall
Meter BridgeMeter BridgeMeter Bridge
Wall MountWall MountWall Mount
On a desk, away from wallsOn a desk, away from wallsOn a desk, away from walls
On a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wall
On a desk, against a wallOn a desk, against a wallOn a desk, against a wall

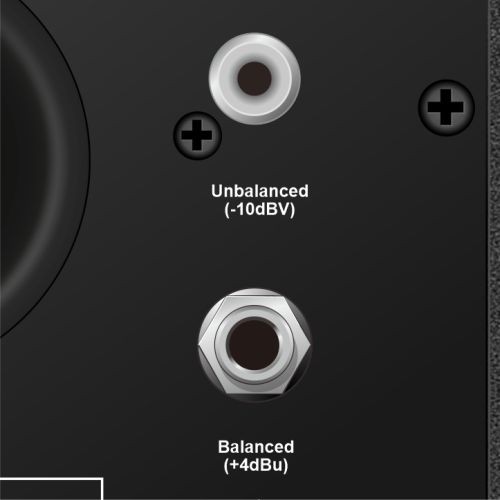

Sensitivity:+4dBu, -10dBv+4dBu, -10dBv+4dBu, -10dBv
Input type:1 xXLR, 1xTRS, 1 x RCA1 xXLR, 1xTRS , 1xRCA1 x XLR, 1x TRS, 1xRCA
Voltage:100-240V~, 50/60Hz100-240V, 50/60Hz100-240V,50/60Hz
Net weight:4.4kgs6.04kgs7.81kgs
Measurements: W180xH288xD295mmW220xH335xD295mmW250xH398xD330mm
TECH SPECS
  • Description:
    2 Way Bi-amplified Near-field Studio Monitor
  • LF Driver:
    5.25'/6.5'/8'
  • HF Driver:
    1' silk dome tweeter
  • Frequency Response:
    45 Hz - 25 kHz / 39 Hz - 25 kHz / 33 Hz - 25 kHz
  • Crossover Frequency:
    3.0KHz / 2.6KHz / 2.6KHz
  • LF Power AMP:
    50W Class D / 50W Class D / 70W Class D
  • HF Power AMP:
    30W Class D
  • Input type:
    1 xXLR, 1xTRS, 1 x RCA

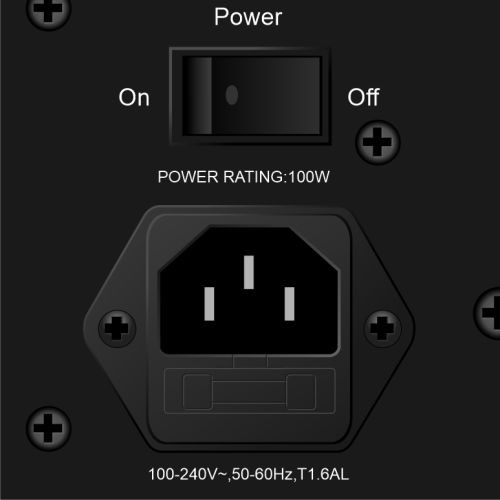

  • Voltage:
    100-240V~, 50/60Hz
<
>
