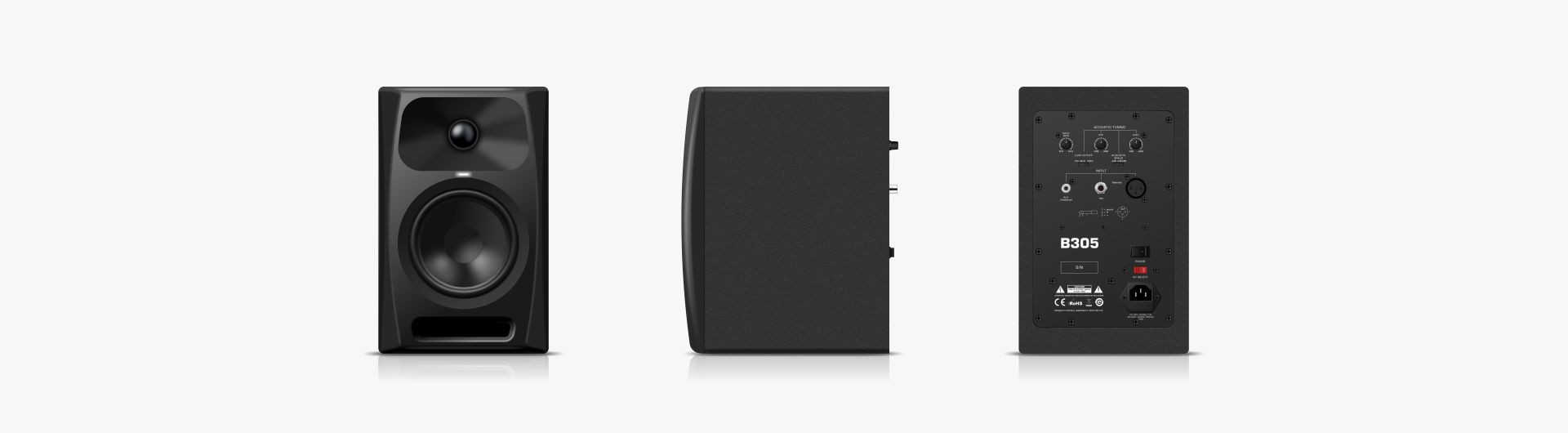

B305 /B306/ B308
B305 /B306/ B308

Big Power, Big Sound

B305/306/308 Series efficient Class D Amplifiers provide abundant power to deliver the output and dynamic headroom needed for the most demanding production styles.

GALLERY
DETAILS


B305B306B308
Description:
2 Way Bi-amplified Near-field Studio Monitors
2 Way Bi-amplified Near-field Studio Monitors
2 Way Bi-amplified Near-field Studio Monitors

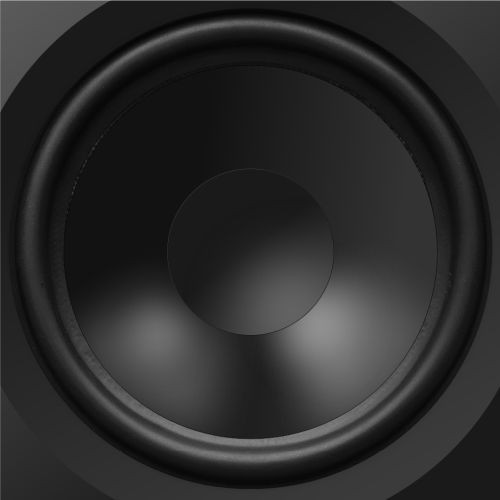

LF Driver:
5.25´´6.5´´8´´

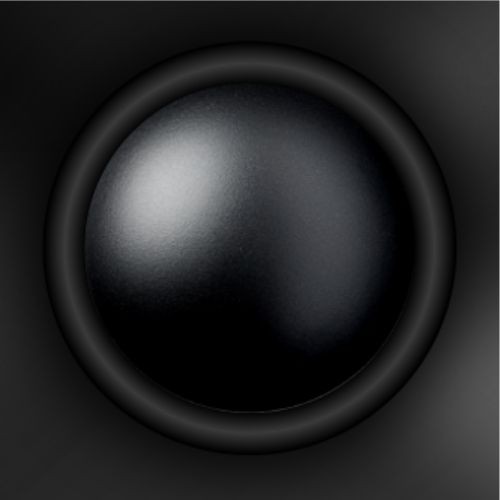

HF Driver:
1" silk dome
1" silk dome
1" silk dome
Frequency Response:
50Hz-20KHz
43Hz-20KHz
38Hz-20KHz
Crossover Frequency:
3.0KHz
3.0KHz
3.0KHz
LF Power AMP:
40W Class D
50W Class D
50W Class D
HF Power AMP:
40W Class D
50W Class D
50W Class D
MF Control:
Variable (-6dB to +6dB)
Variable (-6dB to +6dB)
Variable (-6dB to +6dB)
HF Control:
Variable (-6dB to +6dB)
Variable (-6dB to +6dB)
Variable (-6dB to +6dB)

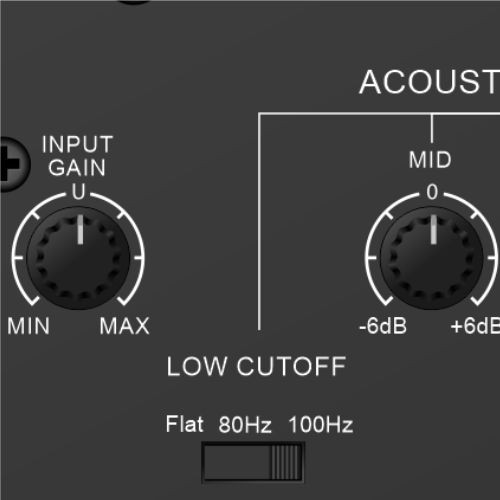

Low Cut:
Flat, 80Hz, 100Hz
Flat, 80Hz, 100Hz
Flat, 80Hz, 100Hz

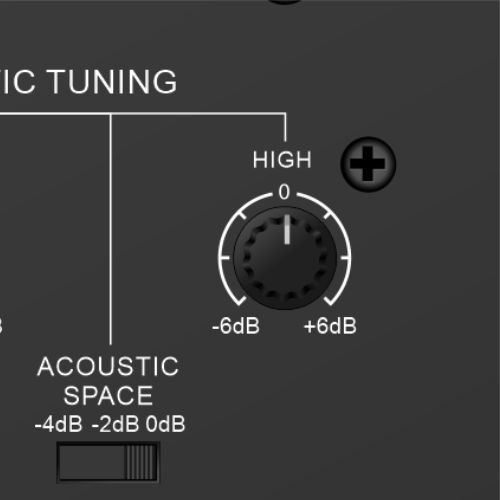

Acoustic Space:
 -4dB, -2dB, 0dB
 -4dB, -2dB, 0dB
 -4dB, -2dB, 0dB

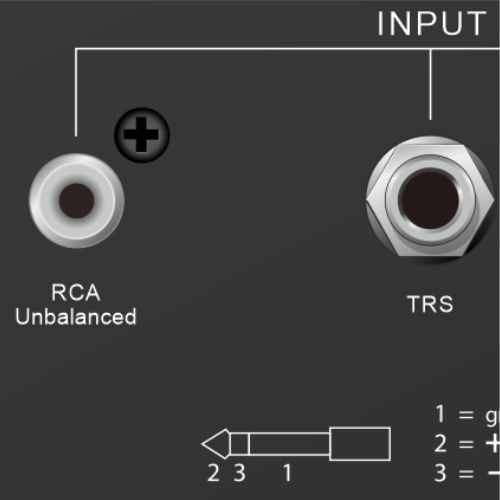

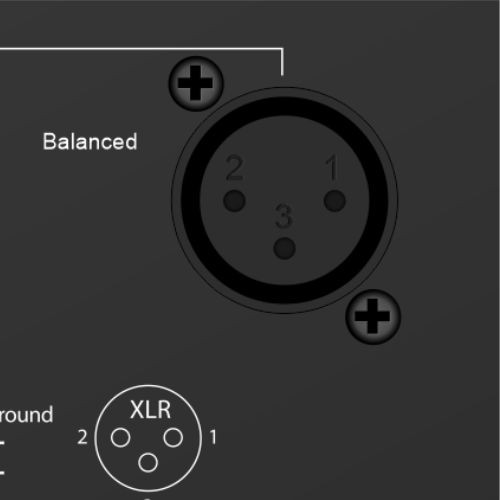

Input type:
1 x XLR, 1X TRS, 1 x RCA
1 x XLR, 1X TRS, 1 x RCA
1 x XLR, 1X TRS, 1 x RCA

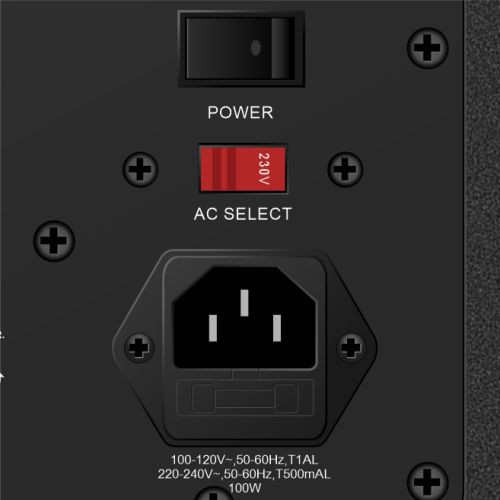

Voltage:
100-240V~, 50/60Hz
100-240V~, 50/60Hz
100-240V~, 50/60Hz
Measurements:
W185xH298xD231mm
W224xH361xD282mm
W254xH419xD308mm

TECH SPECS
  • Description:
    2 Way Bi-amplified Near-field Studio Monitors
  • Crossover Frequency:
    3.0KHz
  • LF Power AMP:
    40W/50W/50W
  • HF Power AMP:
    40W/50W/50W
  • MF Control:
    Variable (-6dB to +6dB)
  • HF Control:
    Variable (-6dB to +6dB)
  • Low Cut:
    Flat, 80Hz, 100Hz
  • Acoustic Space:
    -4dB, -2dB, 0dB
  • Input type:
    1 x XLR, 1X TRS, 1 x RCA
  • Voltage:
    100-240V~, 50/60Hz
<
>
