T8 / T10 / T12
T8 / T10 / T12
3-Way Active Studio Monitor Speaker

T8/T10/T12 are reference monitors designed for medium and large-sized control rooms. They feature all-new  fiberglass composite cone woofers, a 3-inch aluminum magnesium cone mid-range driver, and precision AMT, their waveguide ensures a wide,stable sweet spot. They combine a high power with unparalleled accuracy and produces full-bandwidth, high-resolution audio with precision and clarity.

Developed for transparency, the frequency response is an impressive. A multitude of EQ options, from equalization to delay, are provided for tailoring the monitor to the room and to personal preferences.
GALLERY
DETAILS

 T8T10T12
Description:3-Way Active Studio Monitor Speaker 3-Way Active Studio Monitor Speaker 3-Way Active Studio Monitor Speaker

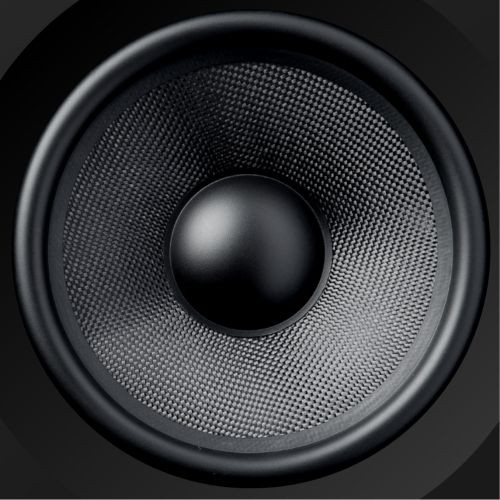

LF Driver:8´´ black glass fiber composite cone with rubber surround10´´ black glass fiber composite cone with rubber surround12´´ black glass fiber composite cone with rubber surround

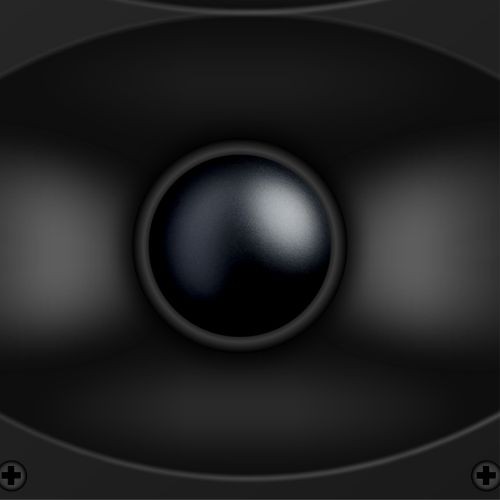

MF Driver:3´´ aluminum/magnesium dome,neodymium magnets,acoustic rear chamber stuffing with acoustic wool.3´´ aluminum/magnesium dome,neodymium magnets,acoustic rear chamber stuffing with acoustic wool.3´´ aluminum/magnesium dome,neodymium magnets,acoustic rear chamber stuffing with acoustic wool.

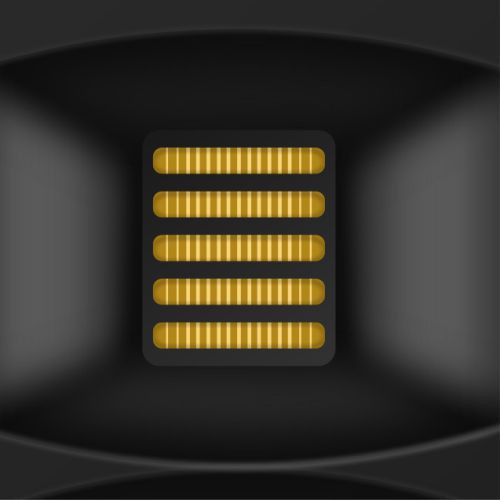

HF Driver:Air Motion TransformerAir Motion TransformerAir Motion Transformer
Frequency Response: 40 Hz - 50 kHz 32 Hz - 50 kHz 25 Hz - 50 kHz
Crossover Frequency:Low-Mid: 450Hz, Mid-High: 3.9KHz Low-Mid: 450Hz, Mid-High: 3.9KHz Low-Mid: 450Hz, Mid-High: 3.9KHz
LF Power AMP:100W Class D100W Class D100W Class D
MF Power AMP:50W Class D50W Class D50W Class D
HF Power AMP:30W Class D30W Class D30W Class D

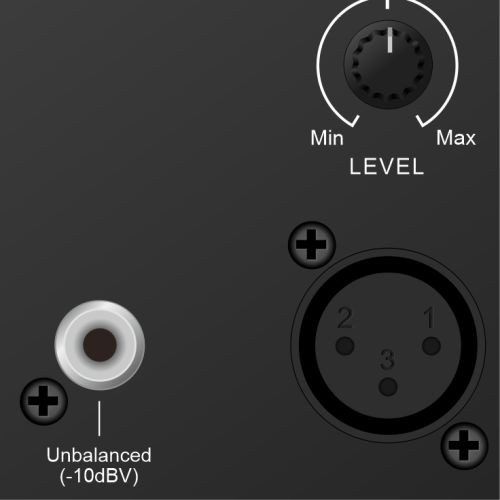

Input connections:1 x XLR panel socket, 3-pin (balanced)1 x XLR panel socket, 3-pin (balanced)1 x XLR panel socket, 3-pin (balanced)
1 x RCA socket (unbalanced)1 x RCA socket (unbalanced)1 x RCA socket (unbalanced)

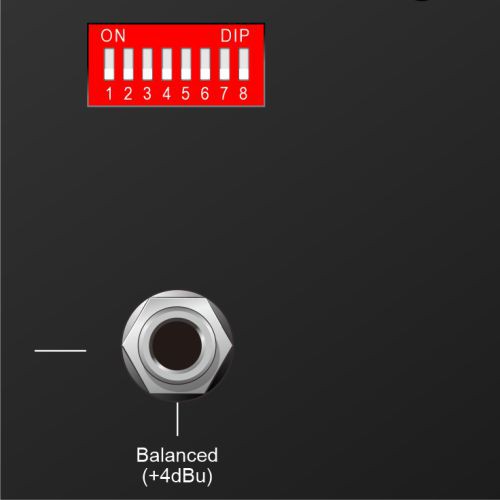

1 x 1/4" jack socket (balanced)1 x 1/4" jack socket (balanced)1 x 1/4" jack socket (balanced)
Input impedance:20kΩ (balanced), 10kΩ (unbalanced)20kΩ (balanced), 10kΩ (unbalanced)20kΩ (balanced), 10kΩ (unbalanced)
Input sensitivity:320 mV pink noise for 106 dB SPL in 1m distance (volume control @ 100%)320 mV pink noise for 112 dB SPL in 1m distance (volume control @ 100%)320 mV pink noise for 118 dB SPL in 1m distance (volume control @ 100%)
EQ settings:Free space (on stands, away from walls)Free space (on stands, away from walls)Free space (on stands, away from walls)

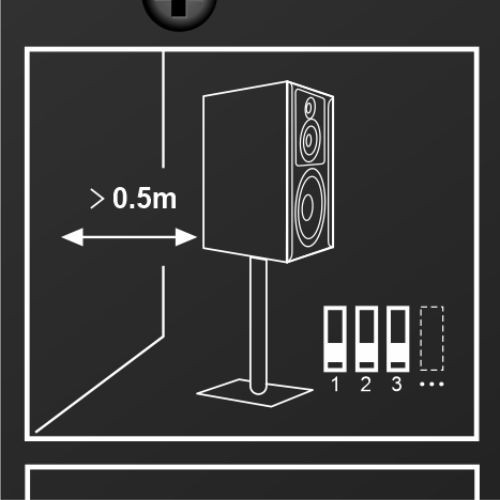

On stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wall
On stands, against a wallOn stands, against a wallOn stands, against a wall
Meter BridgeMeter BridgeMeter Bridge
Wall MountWall MountWall Mount
On a desk, away from wallsOn a desk, away from wallsOn a desk, away from walls
On a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wall
On a desk, against a wallOn a desk, against a wallOn a desk, against a wall
Ambient conditions:Temperature range (0℃-40℃)Temperature range (0℃-40℃)Temperature range (0℃-40℃)
Relative humidity (20%-80%, non-condensing)Relative humidity (20%-80%, non-condensing)Relative humidity (20%-80%, non-condensing)
Protection:Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuseOutput current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuseOutput current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse
Operating supply voltage:100--240V ~ 50/60Hz100--240V ~ 50/60Hz100--240V ~ 50/60Hz
Fuse:5mm × 20mm, 3.15A, 250V, slow blow5mm × 20mm, 3.15A, 250V, slow blow5mm × 20mm, 3.15A, 250V, slow blow
TECH SPECS
  • Description:
    3-Way Active Studio Monitor Speaker
  • LF Driver:
    8'/10'/12' black glass fiber composite cone with rubber surround
  • MF Driver:
    3´ aluminum/magnesium dome, neodymium magnets, acoustic rear chamber stuffing with acoustic wool.
  • HF Driver:
    Air Motion Transformer
  • Crossover Frequency:
    Low-Mid: 450Hz, Mid-High: 3.9KHz
  • LF Power AMP:
    100W Class D
  • MF Power AMP:
    50W Class D
  • HF Power AMP:
    30W Class D
  • Input connections:
    1 xXLR, 1xTRS, 1 x RCA
  • Input impedance:
    20kΩ (balanced), 10kΩ (unbalanced)
  • Protection:
    Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse
  • Operating supply voltage:
    100--240V ~ 50/60Hz
  • Fuse:
    5mm × 20mm, 3.15A, 250V, slow blow
<
>
