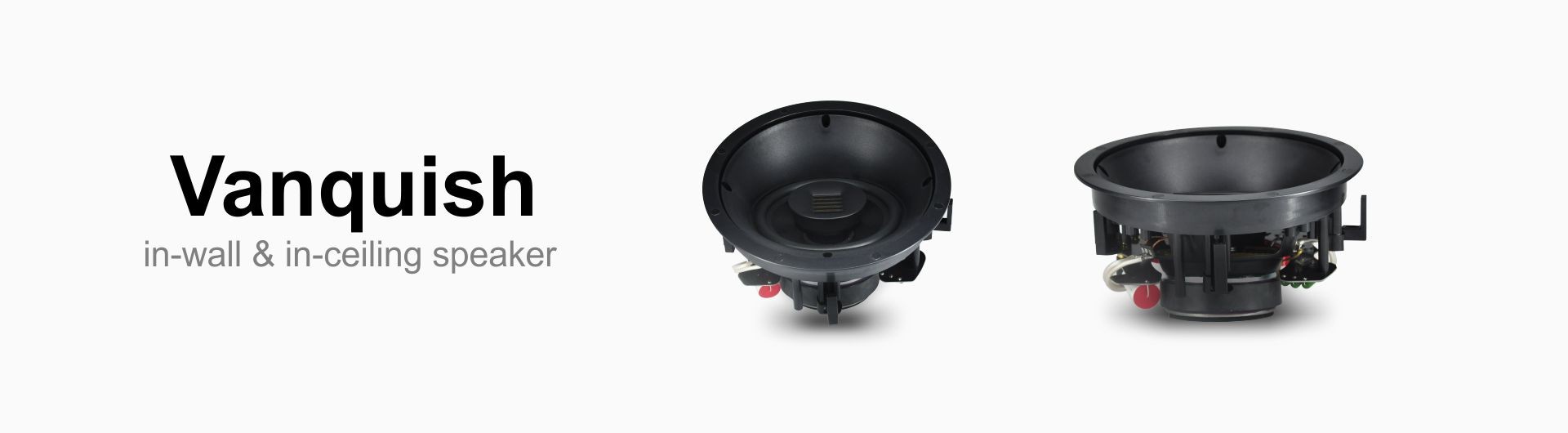

Vanquish 6/8
Vanquish 6/8

Vanquish6/8 feature a newly developed 6´´/8´´ aluminum cone bass midrange unit, providing high-efficiency, low-distortion replay capability, allowing a wide linear listening range, and excellent sound clarity.

Excellent high rigidity and high damping characteristics help to bring calm, solid, distinct layers and excellent low frequency response.

GALLERY
DETAILS

Sound quality

Accurate timbre

Transparent sound field

Speed response


TECH SPECS
  • Description:
    in-wall & in-ceiling speaker
  • Frequency Response:
    52–30KHz/45–30KHz
  • High Frequency Transducer:
    0.92" x 1.2" (2.3cm x 3.1cm) Air Motion Transformer
  • Low Frequency Transducer:
    6.5' or 8"aluminum cone with metal basket
  • Sensitivity:
    88 dB/meter ; 90 dB/meter
  • Impedance:
    4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers
  • Recommended Amplifier Power:
    20-200 watts per channel
  • Crossover Frequency:
    3kHz
  • Inputs:
    Push type binding posts

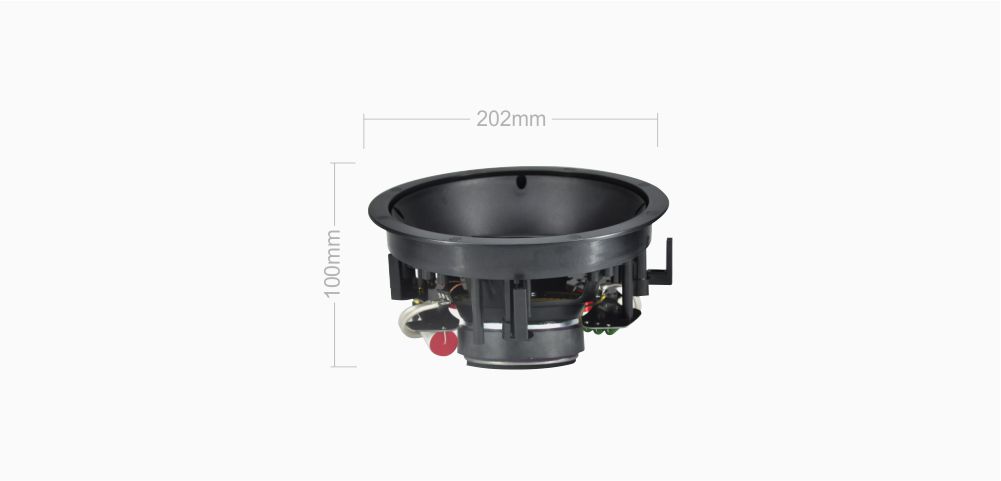

  • Mounting dimension:
    202mm diamater x 100mm depth ; 245mm diamater x 145mm depth
<
>
