NX10A / NX10
NX10A / NX10

2 Way Active&Passive Studio Monitor

As an incredibly valuable tool for audio and music production, NX10A is absolutely your best choice. Whether you’re recording music at home, or geared towards a professional recording studio setup, the NX10A offers a multitude of features geared to meet the demands of today´s competitive producers and engineers.

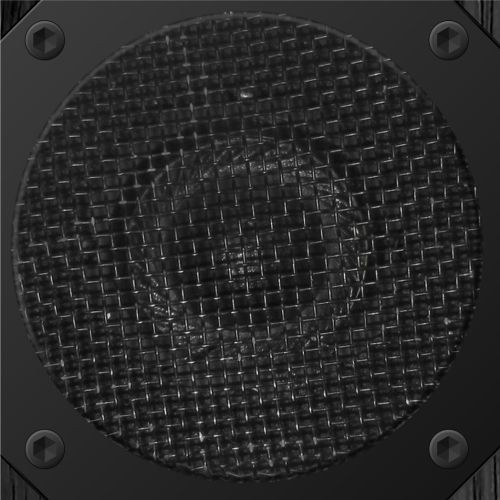

It features a Class D amplifier, a 1.25” silk dome tweeter and a 7” classic white paper cone woofer, which includes multiple input connections to ensure the NX10A easily integrate into any system configuration. It is a valuable compact solution towards accurate mixes, productions.


GALLERY
DETAILS

Key Performance Features

· An incredibly versatile powered nearfield studio monitor, great for any style of music

· Flat Low Frequency Adjustment adding versatility and improved accuracy for mixes that translate in different environments

· Superior low-end extension with optional setting of +2dB Bass Boost acclaimed by music creators worldwide

· High- and low-frequency controls let you contour your sound to your environment and preference

· Multiple audio input connectors (XLR, TRS, RCA) for universal connectivity in any studio environment

· Low and high frequency adjustments tailors the monitors to taste and adjusts for room acoustics




Description: NX10A NX10
2 Way Active Studio Monitor Passive Studio Monitor

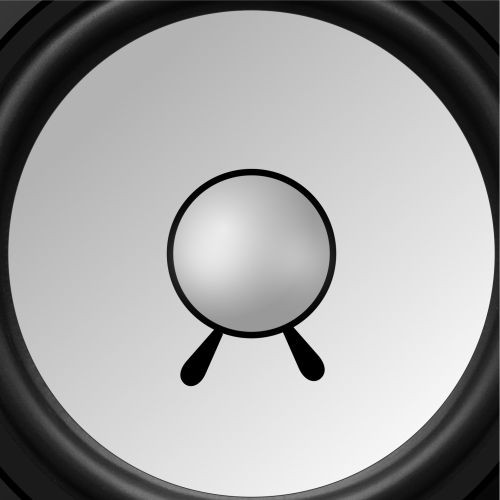

LF Driver: 7´´ Paper Cone 7´´ Paper Cone
HF Driver: 1.25´´ Silk Dome 1.25´´ Silk Dome
Frequency Response: 50Hz-20KHz 50Hz-20KHz
Crossover Frequency: 2.0KHz 2.0KHz
Amplifier Type: Class D /
LF Power: 50W RMS /
HF Power: 30W RMS /
Low Freq. Switch: -2dB, 0dB, +2dB /
High Freq. Switch: -2dB, 0dB, +2dB /

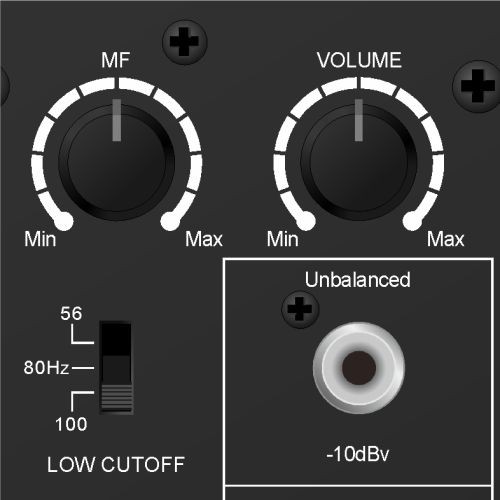

Low Cutoff. Switch: 56Hz, 80Hz, 100Hz /
MF Control: Variable(-15dB to +6dB) /
Inputs: 1×XLR, 1×TRS, 1×RCA /

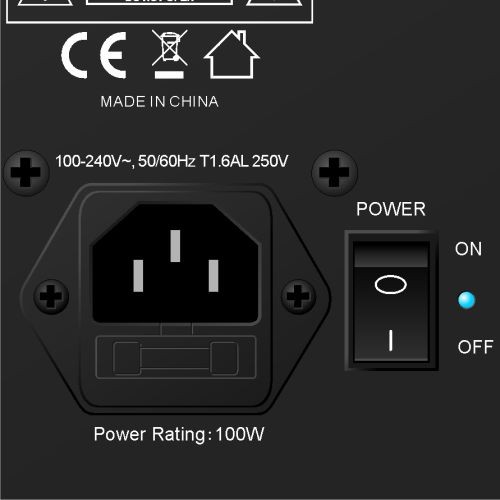

Voltage: 100-240V~, 50/60Hz /

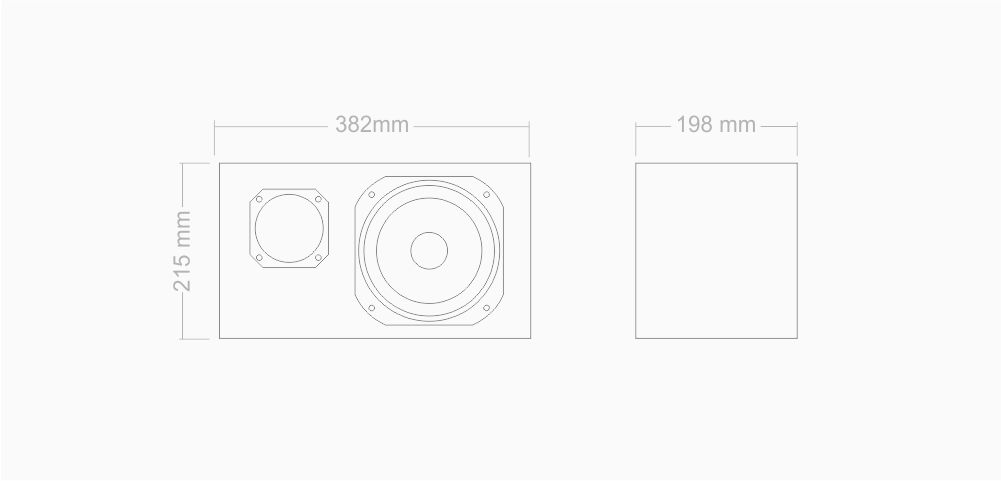

Measurements: W215×H382×D198mm W215×H382×D198mm

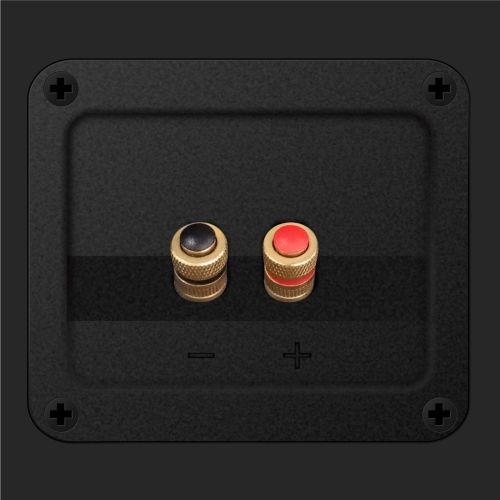

Nominal Input: / 60W
Music Input: / 120W
Impedance: / 8ohms





TECH SPECS
  • Voltage:
    100-240V~, 50/60Hz
  • Crossover Frequency:
    2.0KHz
  • Frequency Response:
    50Hz-20KHz
  • HF Driver:
    1.25'' Silk Dome
  • LF Driver:
    7'' Paper Cone
  • Description:
    2 Way Active&Passive Studio Monitor
<
>
