3-Way Active Triaxial Studio Monitor Speaker

Unlike anything you’ve ever heard, the three-way design lets both the woofer and the tweeter do less work, resulting in better headroom and lower distortion across the frequency spectrum.

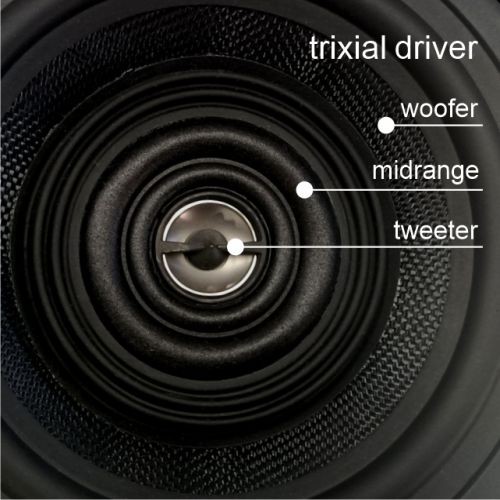

At the same time, the triaxial architecture of the woofer, midrange and tweeter result in hyper-realistic imaging. This means that you’ll be able to hear subtle details in your mix with pinpoint precision.

The design of the system comes together to allow the TX8 monitors to act as acoustic point sources. They enjoy all the benefits of both traditional 3-way systems and traditional triaxial speakers, with none of the drawbacks traditionally associated with either.

All of this make TX8 extremely accurate and easy to mix on. You’ll be able to work faster and with more confidence, and your mixes are going to translate to other systems with less work.

GALLERY
DETAILS

 TX8
Description:3-Way Active Triaxial Studio Monitor Speaker
LF Driver:8´´ glass-fiber composite membrane and aluminum basket woofer.
MF Driver:2.5" black silk membrane driver.
HF Driver:1´´ titanium dome tweeter.
Frequency Response: 40 Hz - 20 kHz
Crossover Frequency:Low-Mid: 350Hz, Mid-High: 4.5KHz
LF Power AMP:100W Class D
MF Power AMP:50W Class D
HF Power AMP:30W Class D

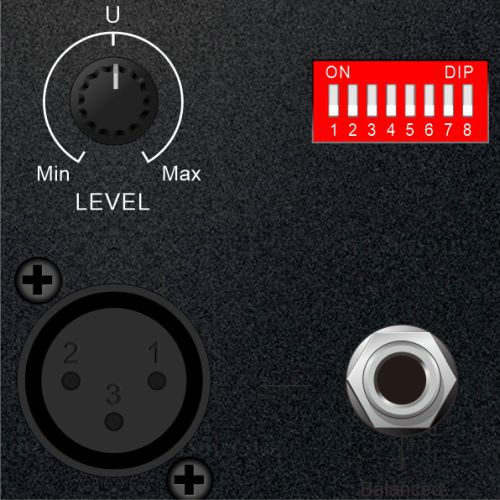

Input connections1 x XLR panel socket, 3-pin (balanced)
1 x RCA socket (unbalanced)
1 x 1/4" jack socket (balanced)
Input impedance20kΩ (balanced), 10kΩ (unbalanced)
Input sensitivity320 mV pink noise for 106 dB SPL in 1m distance (volume control @ 100%)

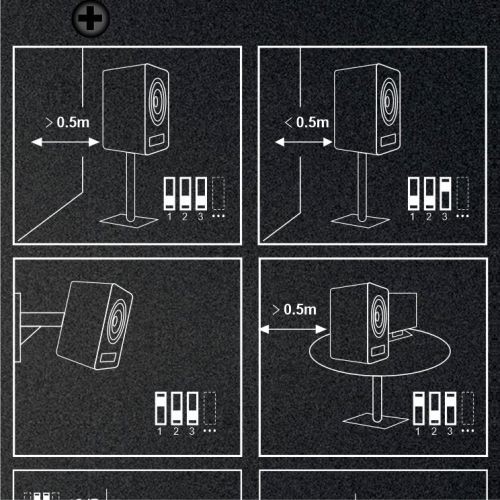

EQ settingsFree space (on stands, away from walls)
On stands, within 0.5 meters of a wall
On stands, against a wall
Meter Bridge
Wall Mount
On a desk, away from walls
On a desk, within 0.5 meters of a wall
On a desk, against a wall
Ambient conditionsTemperature range (0℃-40℃)
Relative humidity (20%-80%, non-condensing)

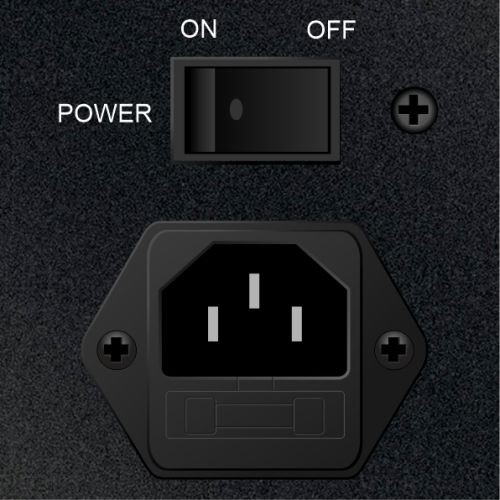

Protection:Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse
Operating supply voltage100--240V ~ 50/60Hz
Fuse

5mm × 20mm, 3.15A, 250V, slow blow

TECH SPECS
  • Description:
    3-Way Active Triaxial Studio Monitor Speaker
  • LF Driver:
    8'' glass-fiber composite membrane and aluminum basket woofer.
  • MF Driver:
    2.5" black silk membrane driver.
  • HF Driver:
    1'' titanium dome tweeter.
  • Frequency Response:
    40 Hz - 20 kHz
  • Crossover Frequency:
    Low-Mid: 350Hz, Mid-High: 4.5KHz
  • LF Power AMP:
    100W Class D
  • MF Power AMP:
    50W Class D
  • HF Power AMP:
    30W Class D
  • Input connections:
    1 xXLR, 1xTRS, 1 x RCA
  • Operating supply voltage:
    100--240V~, 50/60Hz
<
>
