S5 / S6 / S8
S5 / S6 / S8

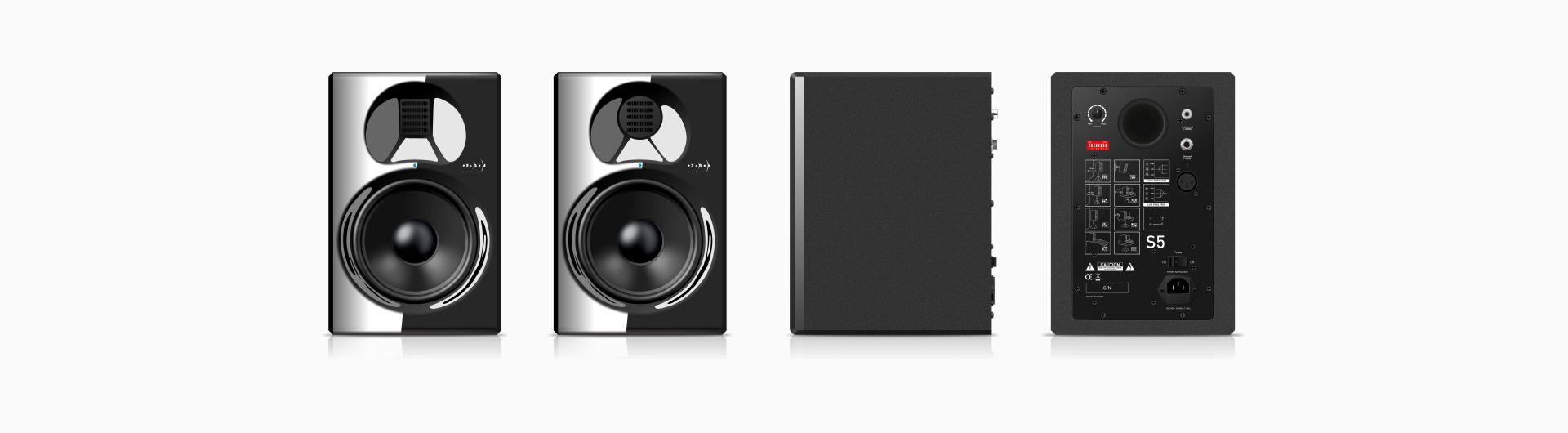

2 Way Bi-amplified Near-field Studio Monitor


S-series studio monitors are designed to allow you to hear every detail that´s happening in your mix.

This starts with an exceptionally accurate frequency response. Whatever is present on your mix is what you´ll hear in these monitors. Nothing is boosted or suppressed to cover flaws or try to sound more pleasing.

The single most important aspect of a studio monitor is its accuracy. A good studio monitor should present the material it’s playing faithfully, allowing you to make critical decisions that you know will translate to all the systems that your work will ultimately be played on.

GALLERY
DETAILS


S5S6S8
Description:2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor

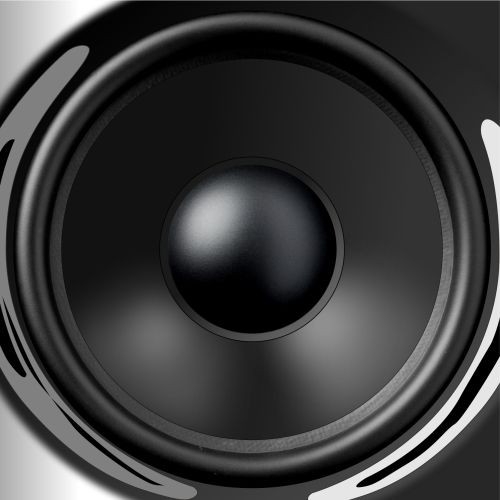

LF Driver:5.25" 6.5´´8´´

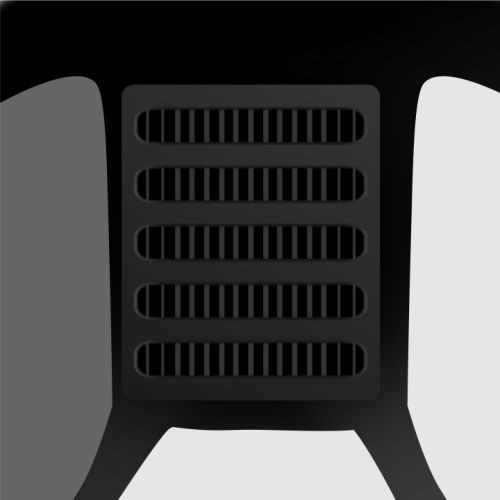

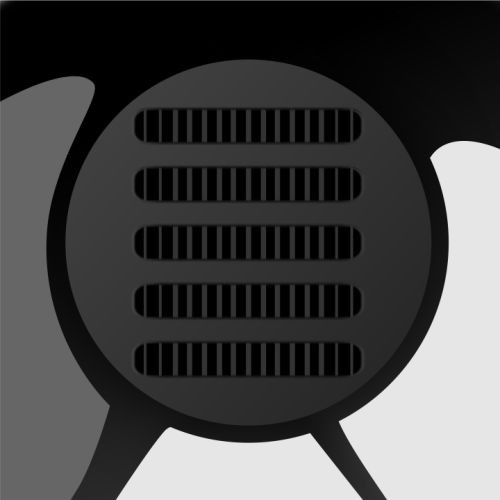

HF Driver:Air Motion Tranformer Air Motion Tranformer Air Motion Tranformer
Frequency Response: 45 Hz - 25 kHz39 Hz - 25 kHz33 Hz - 25 kHz
Crossover Frequency:3.0KHz 2.6KHz 2.6KHz
LF Power AMP:50W Class D50W Class D70W Class D
HF Power AMP:30W Class D30W Class D30W Class D

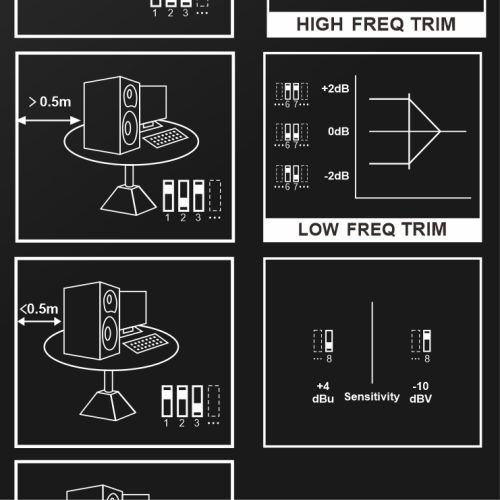

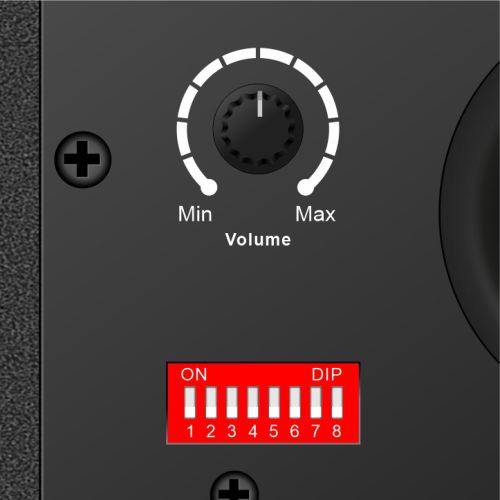

EQ settings:Free space (on stands, away from walls)Free space (on stands, away from walls)Free space (on stands, away from walls)
On stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wall
On stands, against a wallOn stands, against a wallOn stands, against a wall
Meter BridgeMeter BridgeMeter Bridge
Wall MountWall MountWall Mount
On a desk, away from wallsOn a desk, away from wallsOn a desk, away from walls
On a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wall
On a desk, against a wallOn a desk, against a wallOn a desk, against a wall

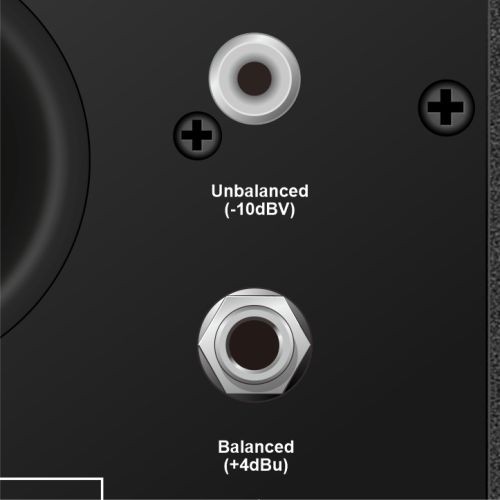

Sensitivity:+4dBu, -10dBv+4dBu, -10dBv+4dBu, -10dBv
Input type:1 xXLR, 1xTRS, 1 x RCA1 xXLR, 1xTRS , 1xRCA1 x XLR, 1x TRS, 1xRCA
Voltage:100-240V~, 50/60Hz100-240V, 50/60Hz100-240V,50/60Hz
Net weight:4.4kgs6.04kgs7.81kgs
Measurements: W180xH288xD295mmW220xH335xD295mmW250xH398xD330mm
TECH SPECS
  • Description:
    2 Way Bi-amplified Near-field Studio Monitor
  • LF Driver:
    5.25'/6.5'/8'
  • HF Driver:
    Air Motion Transformer
  • Frequency Response:
    45 Hz - 25 kHz / 39 Hz - 25 kHz / 33 Hz - 25 kHz
  • Crossover Frequency:
    3.0KHz / 2.6KHz / 2.6KHz
  • LF Power AMP:
    50W Class D / 50W Class D / 70W Class D
  • HF Power AMP:
    30W Class D
  • Input type:
    1 xXLR, 1xTRS, 1 x RCA
  • Voltage:
    100--240V ~ 50/60Hz
<
>
