RG5A
RG5A

In Wall Active Studio Monitor


RG5A is an in-wall speaker, as well as a studio monitor. Amazing! It can realize your dream to mount them in the wall like the big studios do. It can release your room space, while providing excellent sound quality.

GALLERY
DETAILS

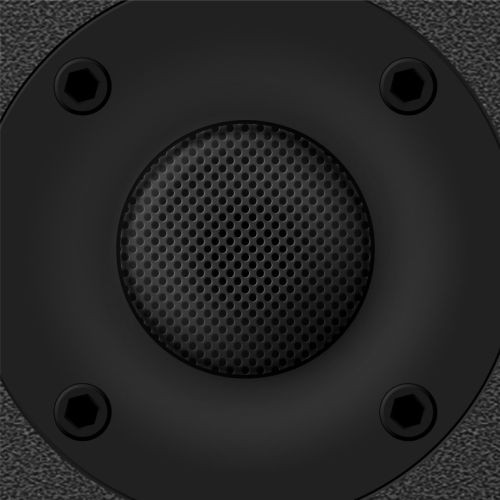

It features a Class D amplifier, two 1.25” silk dome tweeter and a 5.25” paper cone woofer, which includes multiple input connections to ensure the RG5A easily integrate into any system configuration.







TECH SPECS
  • Description:
    In Wall Active Studio Monitor
  • LF Driver:
    5.25'' Paper Cone
  • HF Driver:
    1.25'' Silk Dome
  • Frequency Response:
    50Hz-20KHz
  • Crossover Frequency:
    3.1KHz
  • Amplifier Type:
    Class D

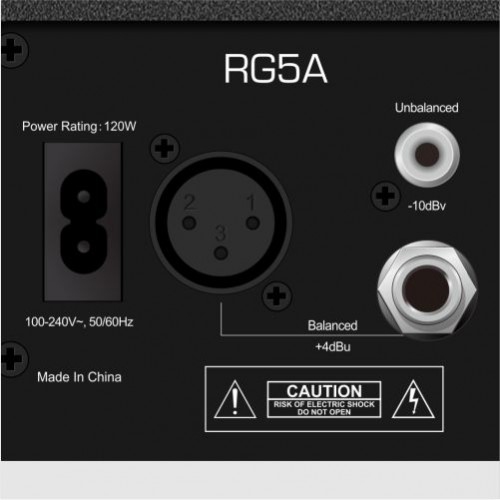

  • Inputs:
    1×XLR, 1×TRS, 1×RCA
  • LF Power:
    50W RMS
  • HF Power:
    30W RMS

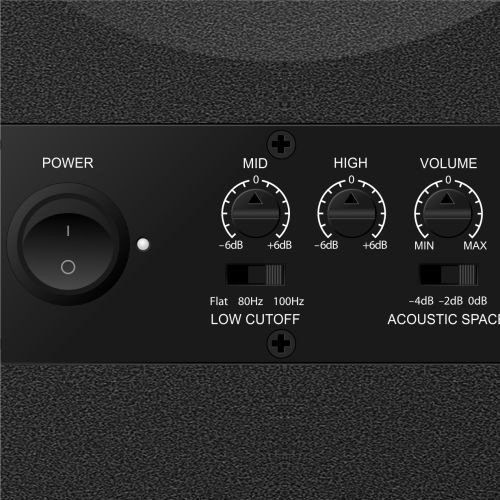

  • MF Control:
    Variable(-6dB to +6dB)
  • HF Control:
    Variable(-6dB to +6dB)
  • Low Cutoff. Switch:
    Flat, 80Hz, 100Hz
  • Acoustic Space Switch:
    -4dB, -2dB, 0dB
  • Voltage:
    100-240V~, 50/60Hz

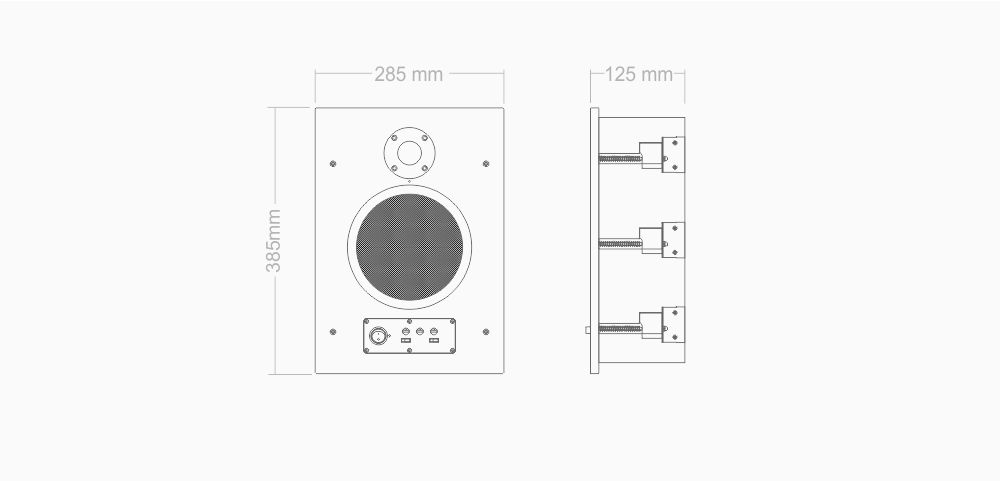

  • Measurements:
    W285×H380×D125mm
<
>
