Q6 / Q8 / Q10
Q6 / Q8 / Q10

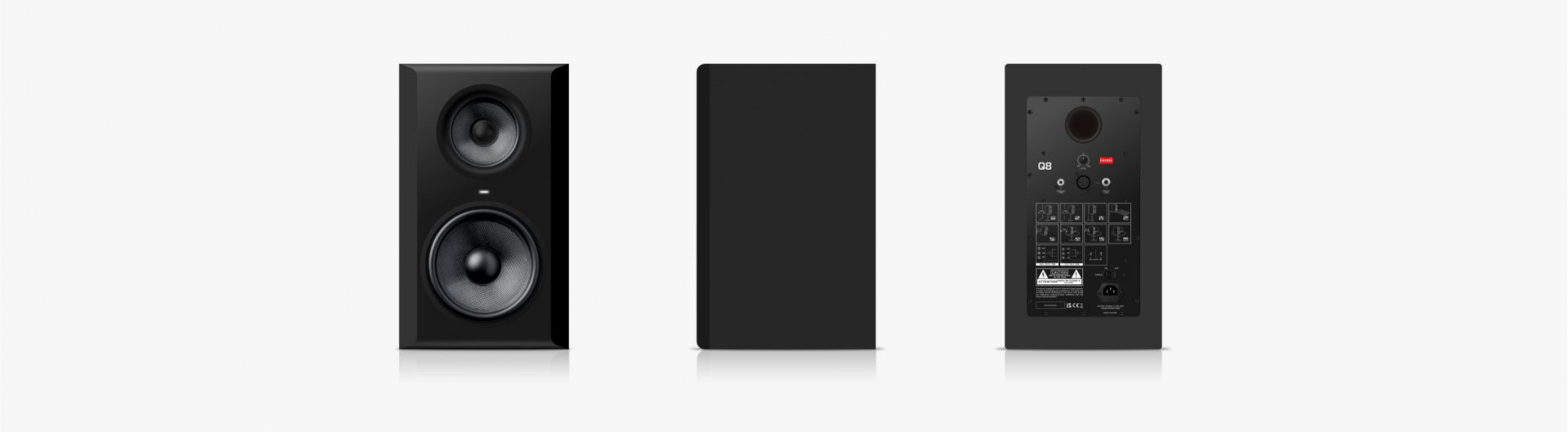

3-Way Active Studio Monitor Speaker

Unlike anything you’ve ever heard, the three-way design lets both the woofer and the tweeter do less work, resulting in better headroom and lower distortion across the frequency spectrum.

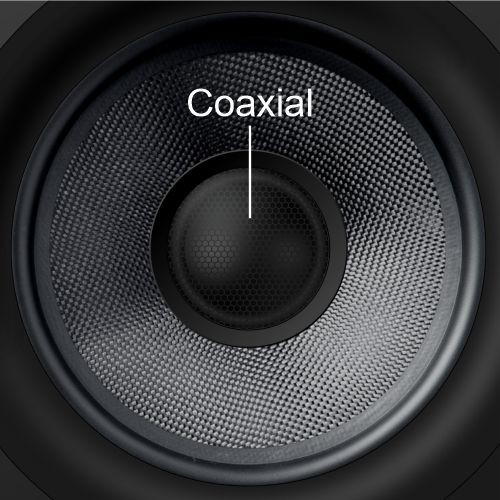

At the same time, the coaxial architecture of the midrange and tweeter result in hyper-realistic imaging. This means that you’ll be able to hear subtle details in your mix with pinpoint precision.

The design of the system comes together to allow the Q-Series monitors to act as acoustic point sources. They enjoy all the benefits of both traditional 3-way systems and traditional coaxial speakers, with none of the drawbacks traditionally associated with either.

All of this make Q series extremely accurate and easy to mix on. You’ll be able to work faster and with more confidence, and your mixes are going to translate to other systems with less work.

GALLERY
DETAILS


Q6Q8Q10
Description:3-Way Active Studio Monitor Speaker 3-Way Active Studio Monitor Speaker 3-Way Active Studio Monitor Speaker
LF Driver:6´´8´´10´´
MF Driver:5.25" 5.25" 5.25"
HF Driver:1´´ silk dome tweeter1´´ silk dome tweeter1´´ silk dome tweeter
Frequency Response: 45Hz - 20 kHz
40Hz - 20 kHz
35 Hz - 20 kHz
Crossover Frequency:Low-Mid: 450Hz, Mid-High: 3.9KHz Low-Mid: 450Hz, Mid-High: 3.9KHz Low-Mid: 450Hz, Mid-High: 3.9KHz
LF Power AMP:100W Class D100W Class D100W Class D
MF Power AMP:50W Class D50W Class D50W Class D
HF Power AMP:30W Class D30W Class D30W Class D

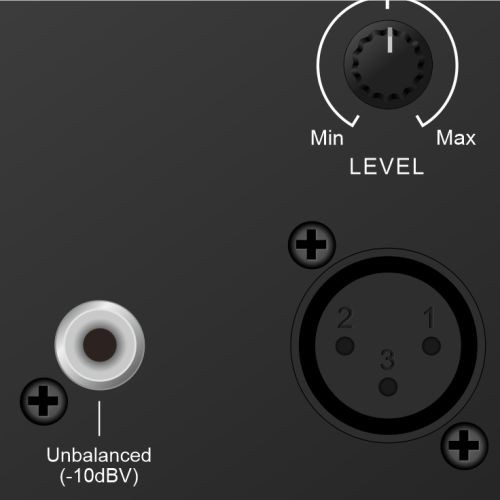

Input connections:1 x XLR panel socket, 3-pin (balanced)1 x XLR panel socket, 3-pin (balanced)1 x XLR panel socket, 3-pin (balanced)
1 x RCA socket (unbalanced)1 x RCA socket (unbalanced)1 x RCA socket (unbalanced)

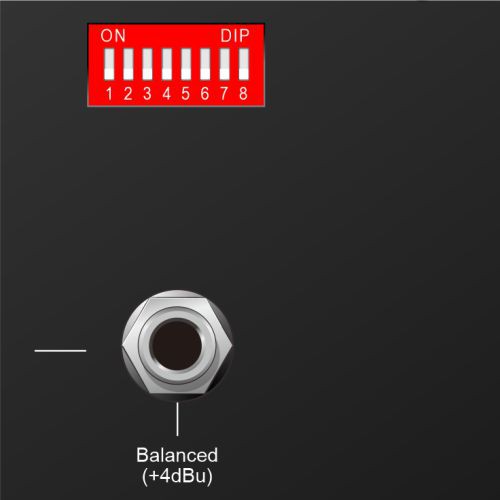

1 x 1/4" jack socket (balanced)1 x 1/4" jack socket (balanced)1 x 1/4" jack socket (balanced)
Input impedance:20kΩ (balanced), 10kΩ (unbalanced)20kΩ (balanced), 10kΩ (unbalanced)20kΩ (balanced), 10kΩ (unbalanced)
Input sensitivity:320 mV pink noise for 100 dB SPL in 1m distance (volume control @ 100%)320 mV pink noise for 106 dB SPL in 1m distance (volume control @ 100%)320 mV pink noise for 112 dB SPL in 1m distance (volume control @ 100%)

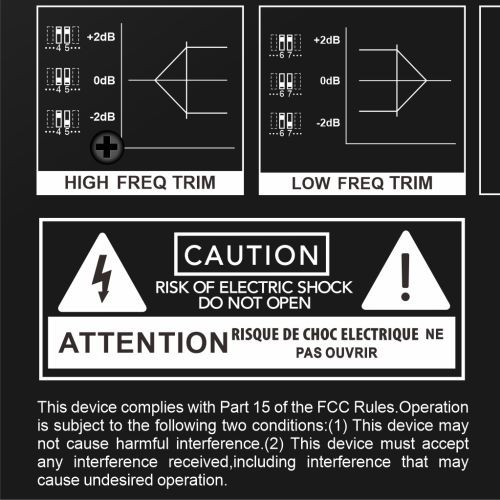

EQ settings:Free space (on stands, away from walls)Free space (on stands, away from walls)Free space (on stands, away from walls)

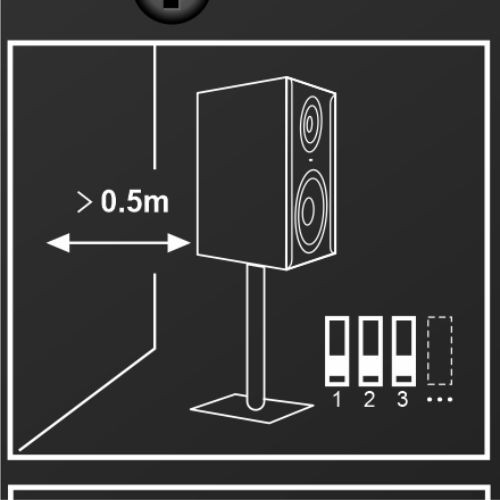

On stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wall
On stands, against a wallOn stands, against a wallOn stands, against a wall
Meter BridgeMeter BridgeMeter Bridge
Wall MountWall MountWall Mount
On a desk, away from wallsOn a desk, away from wallsOn a desk, away from walls
On a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wall
On a desk, against a wallOn a desk, against a wallOn a desk, against a wall
Ambient conditions:Temperature range (0℃-40℃)Temperature range (0℃-40℃)Temperature range (0℃-40℃)
Relative humidity (20%-80%, non-condensing)Relative humidity (20%-80%, non-condensing)Relative humidity (20%-80%, non-condensing)
Protection:Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuseOutput current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuseOutput current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse

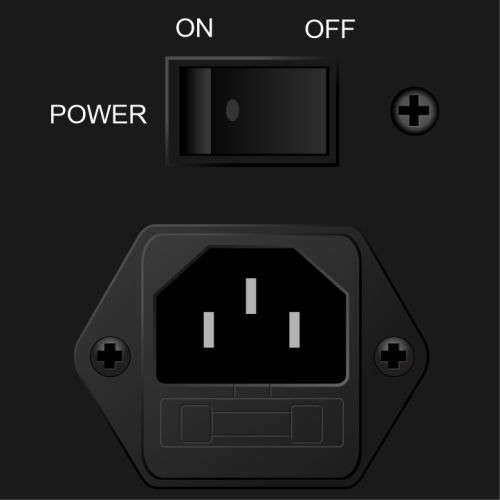

Operating supply voltage:100--240V ~ 50/60Hz100--240V ~ 50/60Hz100--240V ~ 50/60Hz
Fuse:5mm × 20mm, 3.15A, 250V, slow blow5mm × 20mm, 3.15A, 250V, slow blow5mm × 20mm, 3.15A, 250V, slow blow

TECH SPECS
  • Description:
    3-Way Active Studio Monitor Speaker
  • LF Driver:
    6' /8' / 10'
  • MF Driver:
    5.25"
  • HF Driver:
    1' silk dome tweeter
  • Crossover Frequency:
    Low-Mid: 450Hz, Mid-High: 3.9KHz
  • LF Power AMP:
    100W Class D
  • MF Power AMP:
    50W Class D
  • HF Power AMP:
    30W Class D
  • Input connections:
    XLR, TRS, RCA
  • Frequency Response:
    45Hz - 20 kHz (Q6), 40Hz - 20 kHz (Q8), 35 Hz - 20 kHz (Q10)
  • Operating supply voltage:
    100--240V ~ 50/60Hz
<
>
