X6 / X8 / X10
X6 / X8 / X10

3-Way Active Studio Monitor Speaker

The new thunderous X series 3-way studio monitor takes music and sound creativity to a whole new industry-level. A tri-amp monitor ingeniously built for those needing to hear the depths of their productions clearly on every frequency range.

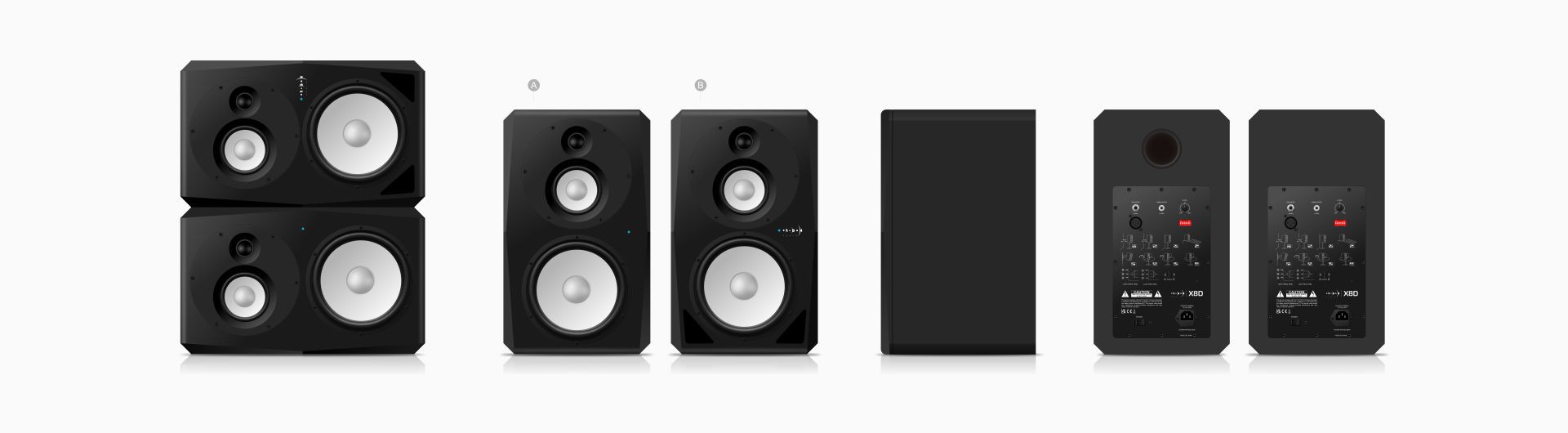

GALLERY
DETAILS

 X6X8X10
Description:3-Way Active Studio Monitor Speaker 3-Way Active Studio Monitor Speaker 3-Way Active Studio Monitor Speaker

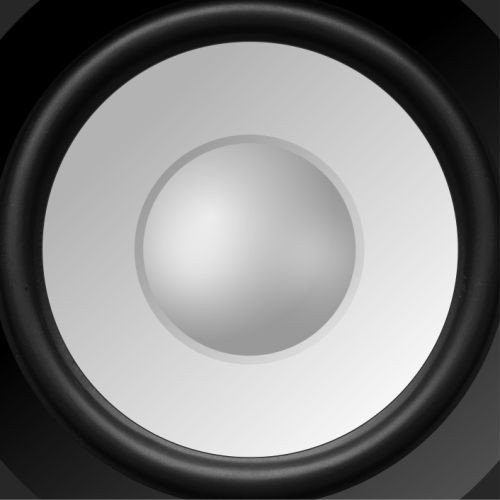

LF Driver:6´´8´´10´´

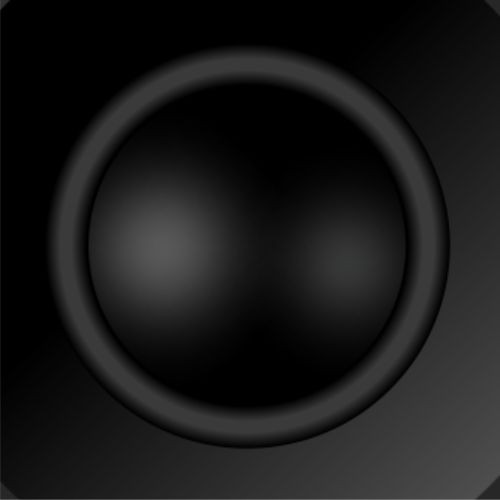

MF Driver:4" 4" 4"
HF Driver:1´´ silk dome tweeter1´´ silk dome tweeter1´´ silk dome tweeter
Frequency Response: 45Hz - 20 kHz40Hz - 20 kHz 35 Hz - 20 kHz
Crossover Frequency:Low-Mid: 450Hz, Mid-High: 3.9KHz Low-Mid: 450Hz, Mid-High: 3.9KHz Low-Mid: 450Hz, Mid-High: 3.9KHz
LF Power AMP:100W Class D100W Class D100W Class D
MF Power AMP:50W Class D50W Class D50W Class D
HF Power AMP:30W Class D30W Class D30W Class D

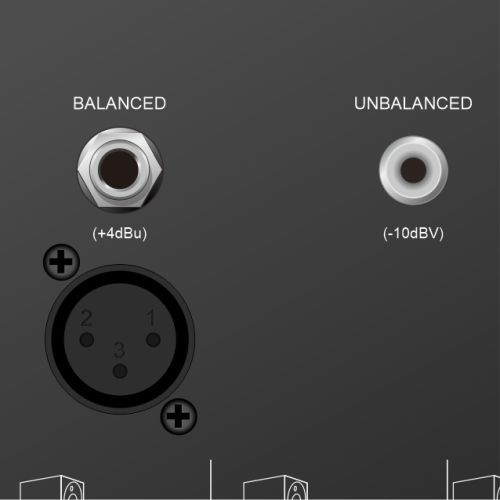

Input connections:1 x XLR panel socket, 3-pin (balanced)1 x XLR panel socket, 3-pin (balanced)1 x XLR panel socket, 3-pin (balanced)
1 x RCA socket (unbalanced)1 x RCA socket (unbalanced)1 x RCA socket (unbalanced)
1 x 1/4" jack socket (balanced)1 x 1/4" jack socket (balanced)1 x 1/4" jack socket (balanced)
Input impedance:20kΩ (balanced), 10kΩ (unbalanced)20kΩ (balanced), 10kΩ (unbalanced)20kΩ (balanced), 10kΩ (unbalanced)
Input sensitivity:320 mV pink noise for 100 dB SPL in 1m distance (volume control @ 100%)320 mV pink noise for 106 dB SPL in 1m distance (volume control @ 100%)320 mV pink noise for 112 dB SPL in 1m distance (volume control @ 100%)

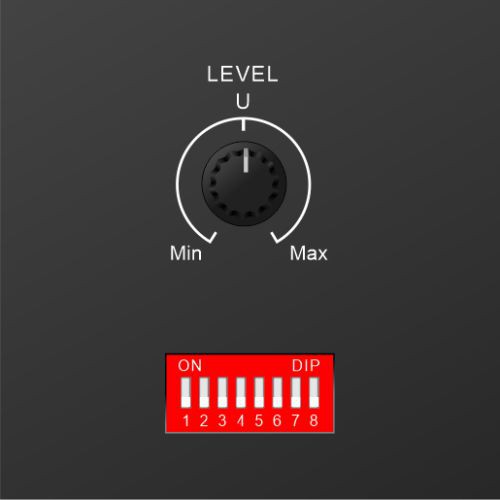

EQ settings:Free space (on stands, away from walls)Free space (on stands, away from walls)Free space (on stands, away from walls)
On stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wallOn stands, within 0.5 meters of a wall
On stands, against a wallOn stands, against a wallOn stands, against a wall
Meter BridgeMeter BridgeMeter Bridge
Wall MountWall MountWall Mount
On a desk, away from wallsOn a desk, away from wallsOn a desk, away from walls
On a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wallOn a desk, within 0.5 meters of a wall
On a desk, against a wallOn a desk, against a wallOn a desk, against a wall
Ambient conditions:Temperature range (0℃-40℃)Temperature range (0℃-40℃)Temperature range (0℃-40℃)
Relative humidity (20%-80%, non-condensing)Relative humidity (20%-80%, non-condensing)Relative humidity (20%-80%, non-condensing)

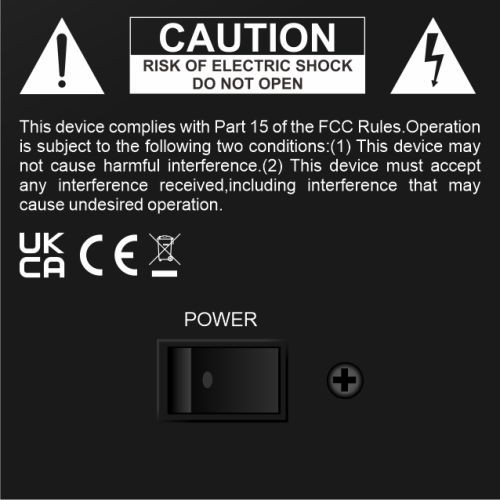

Protection:Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuseOutput current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuseOutput current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse

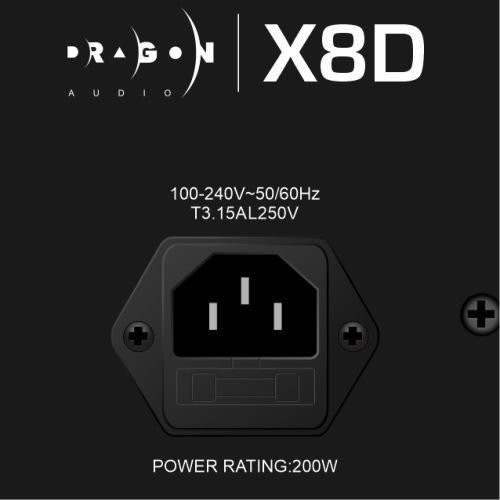

Operating supply voltage:100--240V ~ 50/60Hz100--240V ~ 50/60Hz100--240V ~ 50/60Hz
Fuse:5mm × 20mm, 3.15A, 250V, slow blow5mm × 20mm, 3.15A, 250V, slow blow5mm × 20mm, 3.15A, 250V, slow blow
TECH SPECS
  • Description:
    3-Way Active Studio Monitor Speaker
  • LF Driver:
    6' /8' / 10'
  • MF Driver:
    4"
  • HF Driver:
    1' silk dome tweeter
  • Input connections:
    XLR, TRS, RCA
  • HF Power AMP:
    30W Class D
  • MF Power AMP:
    50W Class D
  • LF Power AMP:
    100W Class D
  • Frequency Response:
    45Hz - 20 kHz (X6), 40Hz - 20 kHz (X8), 35 Hz - 20 kHz (X10)
  • Crossover Frequency:
    Low-Mid: 300Hz, Mid-High: 3KHz
  • Operating supply voltage:
    100--240V ~ 50/60Hz
<
>
