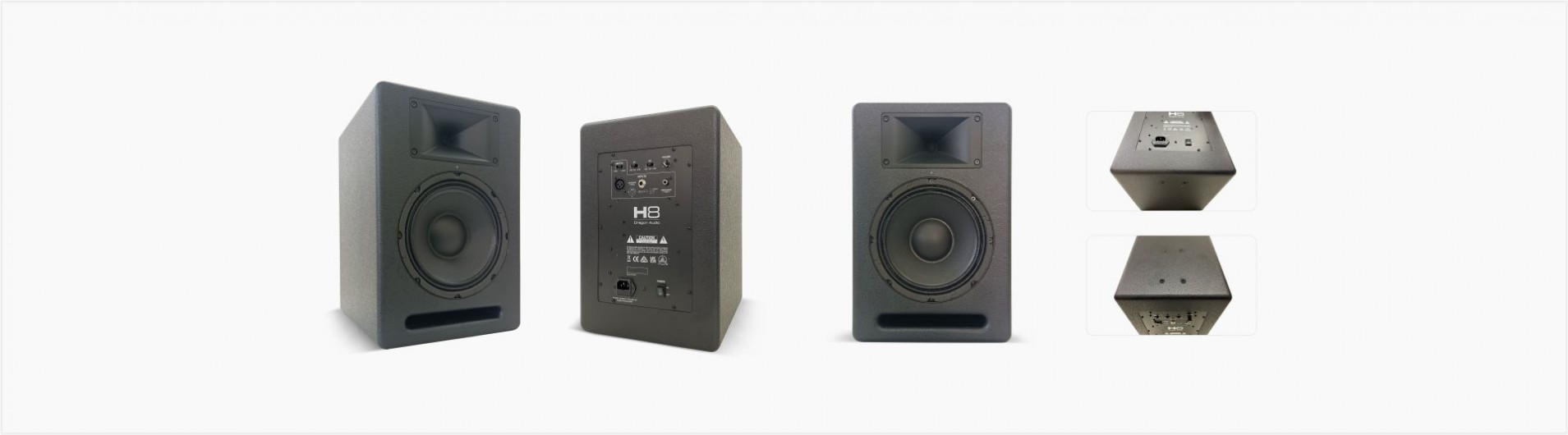

H6 / H8 / H10
High powered, mid/near-field 2-way studio monitor

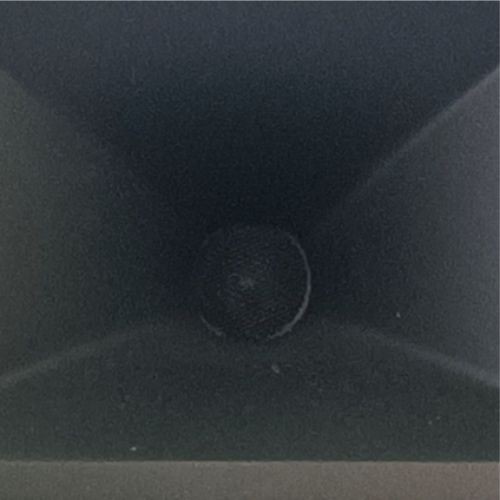

This 250 Watt, bi-amped active studio monitor featured an air motion transformer / compression driver / true ribbon tweeter,
6.5’’/8’’/10’’ woofer, plays a remarkable trick of sounding huge.
The super high power helps the speaker deliver a bass performance that went well beyond that of its contemporary competitors, enables the tweeter to disperse sound in space with controlled consistency.
It has enormous clarity and displays all the subjective qualities of a much larger monitor working well within its limit.
It has a set of switchable filters that assisted the user in optimising the speaker for both room acoustics and positioning.
DETAILS
| | H6 | H8 | H10 |
| Description: | 2 Way Bi-amplified Near-field Studio Monitor | 2 Way Bi-amplified Near-field Studio Monitor | 2 Way Bi-amplified Near-field Studio Monitor |
| LF Driver: | 6.5" | 8´´ | 10´´ |
| HF Driver: | air motion transformer / compression driver / true ribbon tweeter | air motion transformer / compression driver / true ribbon tweeter | air motion transformer / compression driver / true ribbon tweeter |
| Frequency Response: | 40 Hz - 25 kHz | 35 Hz - 25 kHz | 30 Hz - 25 kHz |
| Crossover Frequency: | 2.8KHz | 2.8KHz | 2.8KHz |
| Amplifiers Type: | Class D, SigmaDSP Internal Resolution | Class D, SigmaDSP Internal Resolution | Class D, SigmaDSP Internal Resolution |
| LF Power AMP: | 150W RMS | 200W RMS | 250W RMS |
| HF Power AMP: | 60W RMS | 60W RMS | 60W RMS |
| LF Cutoff: | 60Hz, 50Hz, 40Hz | 60Hz, 50Hz, 40Hz | 60Hz, 50Hz, 40Hz |
| LF Trim: | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB |
| MF Trim: | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB |
| HF Trim: | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB |
| Sensitivity: | +4dBu, -10dBv | +4dBu, -10dBv | +4dBu, -10dBv |
| Input type: | 1 xXLR, 1xTRS, 1 x RCA | 1 xXLR, 1xTRS , 1xRCA | 1 x XLR, 1x TRS, 1xRCA |
| Voltage: | 100-240V~, 50/60Hz | 100-240V, 50/60Hz | 100-240V,50/60Hz |
| Measurements: | W235*H354*D250mm | W268*H400*D300mm | W318*H475*D350mm |
TECH SPECS
-
Description:
2 Way Bi-amplified Mid/Near-field Studio Monitor
-
LF Driver:
6.5'' / 8'' / 10''
-
HF Driver:
Air Motion Transformer / Compression Driver / True Ribbon Tweeter
-
Amplifiers Type:
Class D, SigmaDSP Internal Resolution
-
LF Power AMP:
150W RMS (H6) / 200W RMS (H8) / 250W RMS (H10)
-
HF Power AMP:
60W RMS
-
LF Cutoff:
60Hz, 50Hz, 40Hz
-
LF Trim:
-2dB, 0dB, +2dB
-
MF Trim:
-2dB, 0dB, +2dB
-
HF Trim:
-2dB, 0dB, +2dB
-
Sensitivity:
+4dBu, -10dBv
-

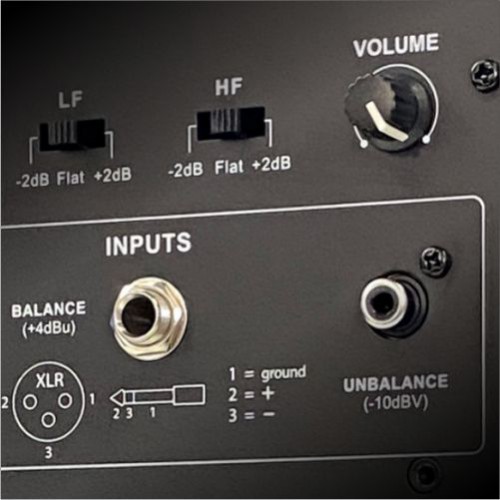

Input type:
1 xXLR, 1xTRS, 1 x RCA
-
Voltage:
100-240V~, 50/60Hz
