AS4/5/6
AS4/5/6

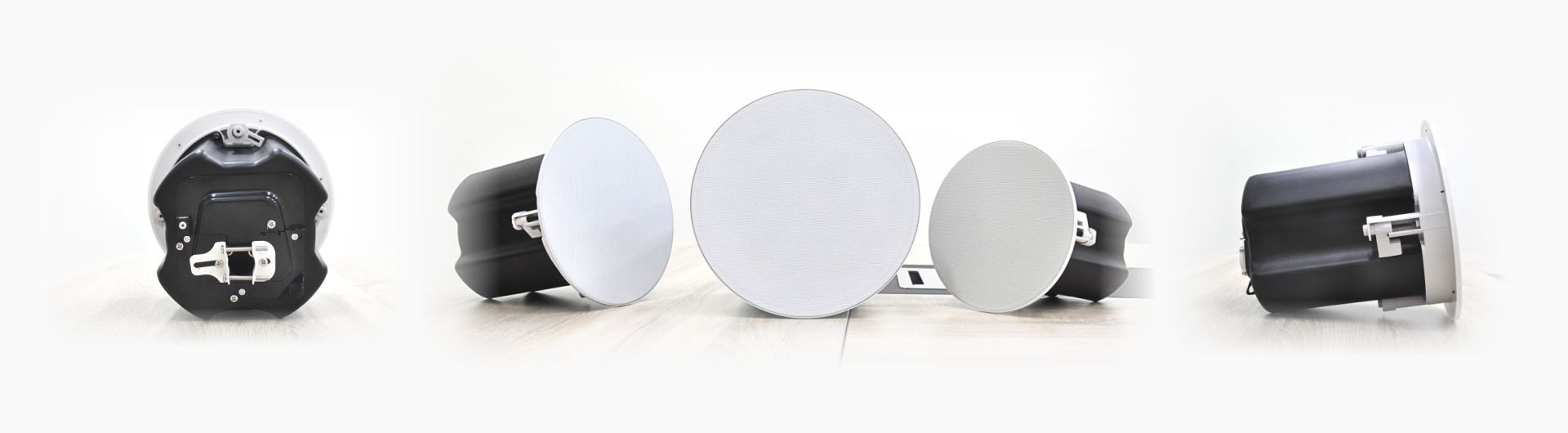

In-Wall/Ceiling Speaker

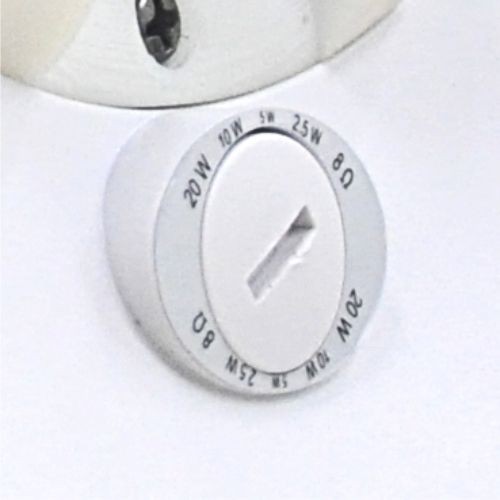

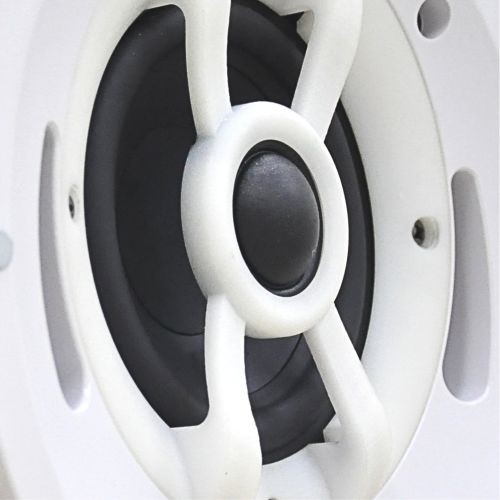

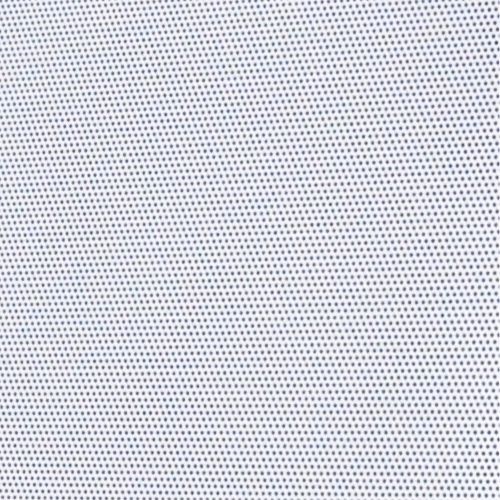

AS4&AS5&AS6 are made out of high quality metal with fine painting finish - which is for both front grill and backcan, besides the elegant mechanical part, the drivers are making up by well tuned paper cone woofer and natural silkdome tweeter, together with the build in transformer, there is djustment knob in front controlling the voltage.

The AS Series can be built with and without the backcan per your requirements.

GALLERY
DETAILS


Besides current dimensions available, the AS8 is going to be presented in Apr.2020.


Model

AS4

AS5

AS6

Description:

In-Wall/Ceiling Speaker

In-Wall/Ceiling Speaker

In-Wall/Ceiling Speaker

Frequency Response:

80-20kHz

70-20kHz

60-20kHz

Tweeter:

1´´(25mm) silk dome

1´´(25mm) silk dome

1´´(25mm) silk dome

Woofer:

4´´ Paper Cone

5.25´´ Paper Cone

6.5´´ Paper Cone

Sensitivity:

86dB/m

87dB/m

88dB/m

Impedance:

8Ohms

8Ohms

8Ohms

Transformer:

70V/100V 20W/10W/5W/2.5W

/8 Ohms

70V/100V 30W/15W/7.5W/3.8W

/8Ohms

70V/100V 40W/20W/10W/5

/8Ohms

Recommended Amp Power:

20-200 watts per channel

20-200 watts per channel

20-200 watts per channel

Crossover Frequency:

3kHz

3kHz

3kHz

Inputs:

Push style binding posts

Push style binding posts

Push style binding posts

TECH SPECS
  • Description:
    In-Wall/Ceiling Speaker
  • Recommended Amp Power:
    20-200 watts per channel
  • Inputs:
    Push style binding posts
<
>
