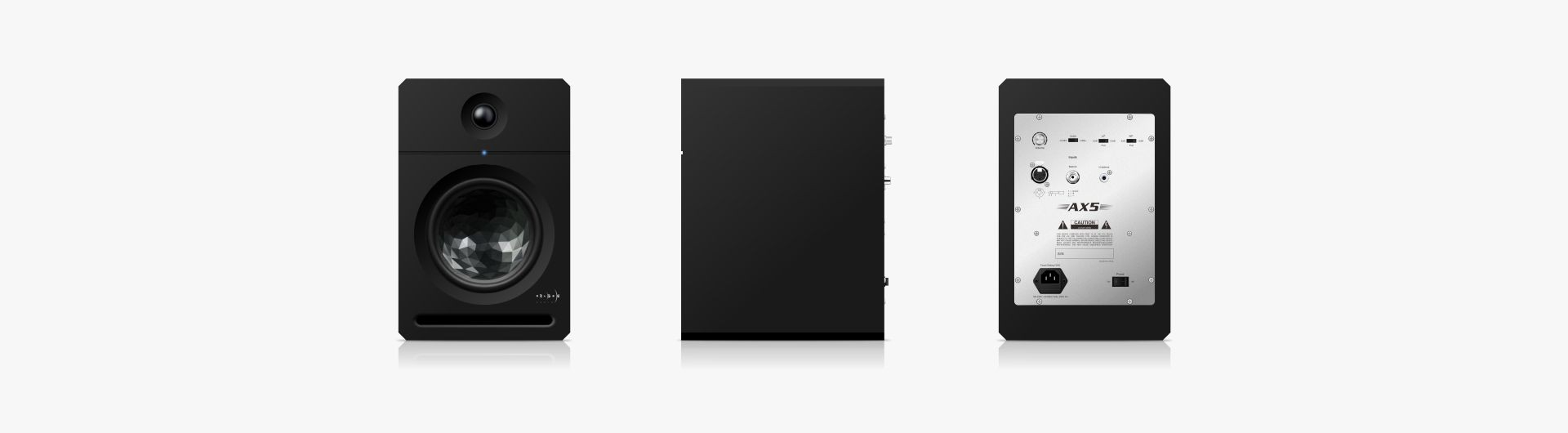

AX5 / AX6 / AX8
AX5 / AX6 / AX8

Powerful near-field 2-way studio monitor

AX series produces a level of detail and sensitivity that reveals things you didn’t know in your music before. It translates your mix in a way that feels natural and accurate without the fatigue that other monitors can bring after long hours at the studio desk.

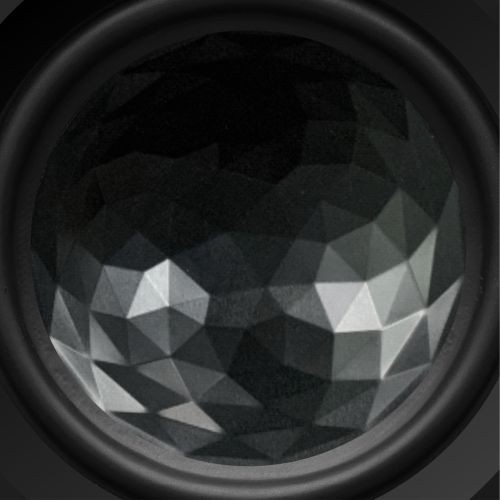

Unique crystal membrane bass driver: more than just an attractive design feature.

The crystal-shaped inverse aluminum dome is joined to the paper cone in a special gluing process to result in the desired sandwich construction. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics.

GALLERY
DETAILS

 AX5AX6AX8
Description:2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor
LF Driver:5.25" 6.5" 8´´

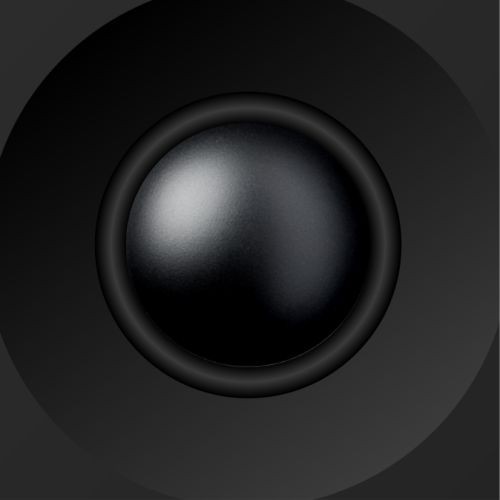

HF Driver:1.5´´ silk dome tweeter1.5´´ silk dome tweeter1.5´´ silk dome tweeter
Frequency Response: 45 Hz - 20 kHz39 Hz - 20 kHz33 Hz - 20 kHz
Crossover Frequency:2.8KHz2.6KHz2.6KHz
Amplifiers Type:Class DClass DClass D
LF Power AMP:100W RMS150W RMS200W RMS
HF Power AMP:50W RMS50W RMS50W RMS

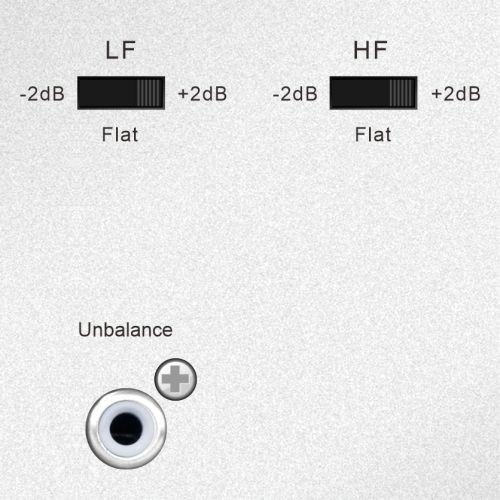

LF Trim:-2dB, Flat, +2dB-2dB, Flat, +2dB-2dB, Flat, +2dB
HF Trim:-2dB, Flat, +2dB-2dB, Flat, +2dB-2dB, Flat, +2dB

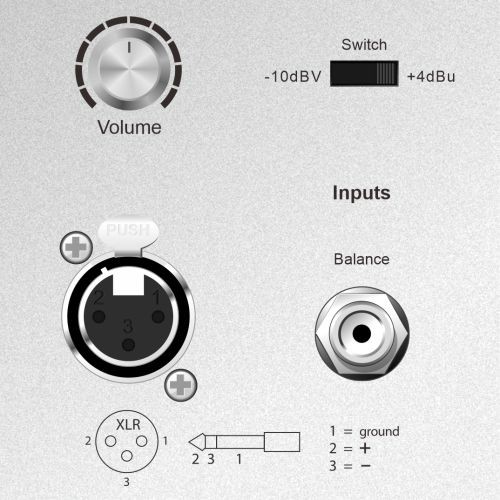

Sensitivity:+4dBu, -10dBv+4dBu, -10dBv+4dBu, -10dBv
Input type:1 xXLR, 1xTRS, 1 x RCA1 xXLR, 1xTRS, 1 x RCA1 xXLR, 1xTRS , 1xRCA
Voltage:100-240V~, 50/60Hz100-240V~, 50/60Hz100-240V, 50/60Hz
Measurements: W190*H290*D230mmW220*H335*D260mmW260*H398*D285mm
TECH SPECS
  • Description:
    2 Way Bi-amplified Near-field Studio Monitor
  • LF Driver:
    5.25" / 6.5'' / 8''
  • HF Driver:
    1.5'' silk dome tweeter
  • Amplifiers Type:
    Class D
  • LF Power AMP:
    100W RMS / 150W RMS / 200W RMS
  • HF Power AMP:
    50W RMS
  • LF Trim:
    -2dB, Flat, +2dB
  • HF Trim:
    -2dB, Flat, +2dB
  • Sensitivity:
    +4dBu, -10dBv
  • Input type:
    XLR, TRS, RCA
  • Voltage:
    100-240V~, 50/60Hz
<
>
