Dragon Audio 3-Way Triaxial Speaker

Dragon Audio´s triaxial three-way speaker is an excellent choice to replace under performing factory 8" triaxial speaker. A real-world, competition-tested 100 watt RMS power handling specification means these will work in nearly any system.

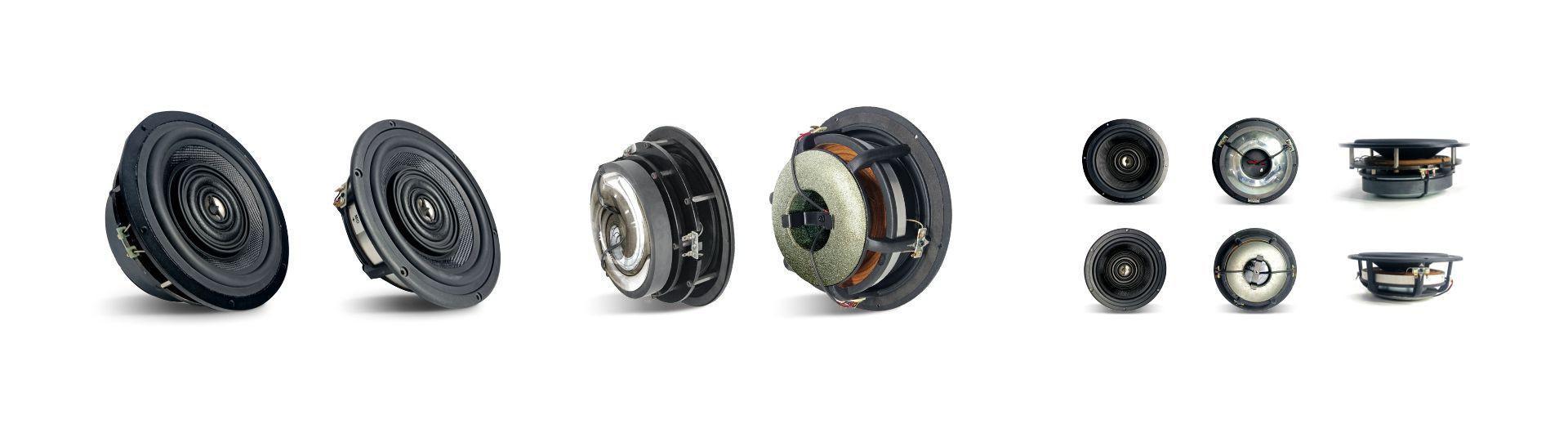

GALLERY
DETAILS

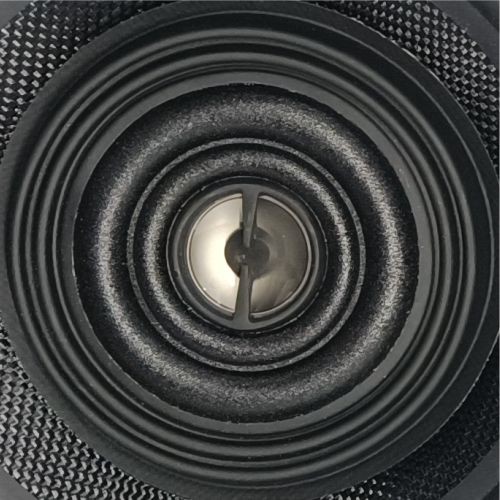

In addition to the 8´´ black carbon cone woofer with rubber surround, you get a 3´´ silkdome midrange and a 1´´ Titanium diaphragm tweeter for extended, natural high that are crossed over at 800Hz & 4000Hz.


TECH SPECS

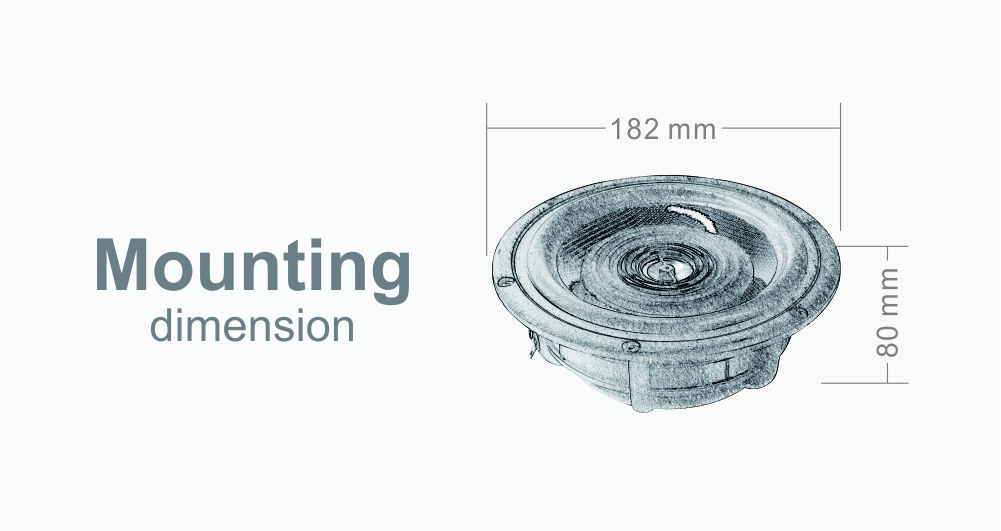

  • Mounting dimension:
    182mm diamater x 80mm depth
  • Description:
    3-way triaxial driver
  • Tweeter:
    1', Titanium diaphragm
  • Midrange:
    3' silkdome
  • Woofer:
    8' black carbon fiber, aluminum frame
  • Voice coil diameter:
    tweeter 25mm; midrange 50mm ; woofer 75mm

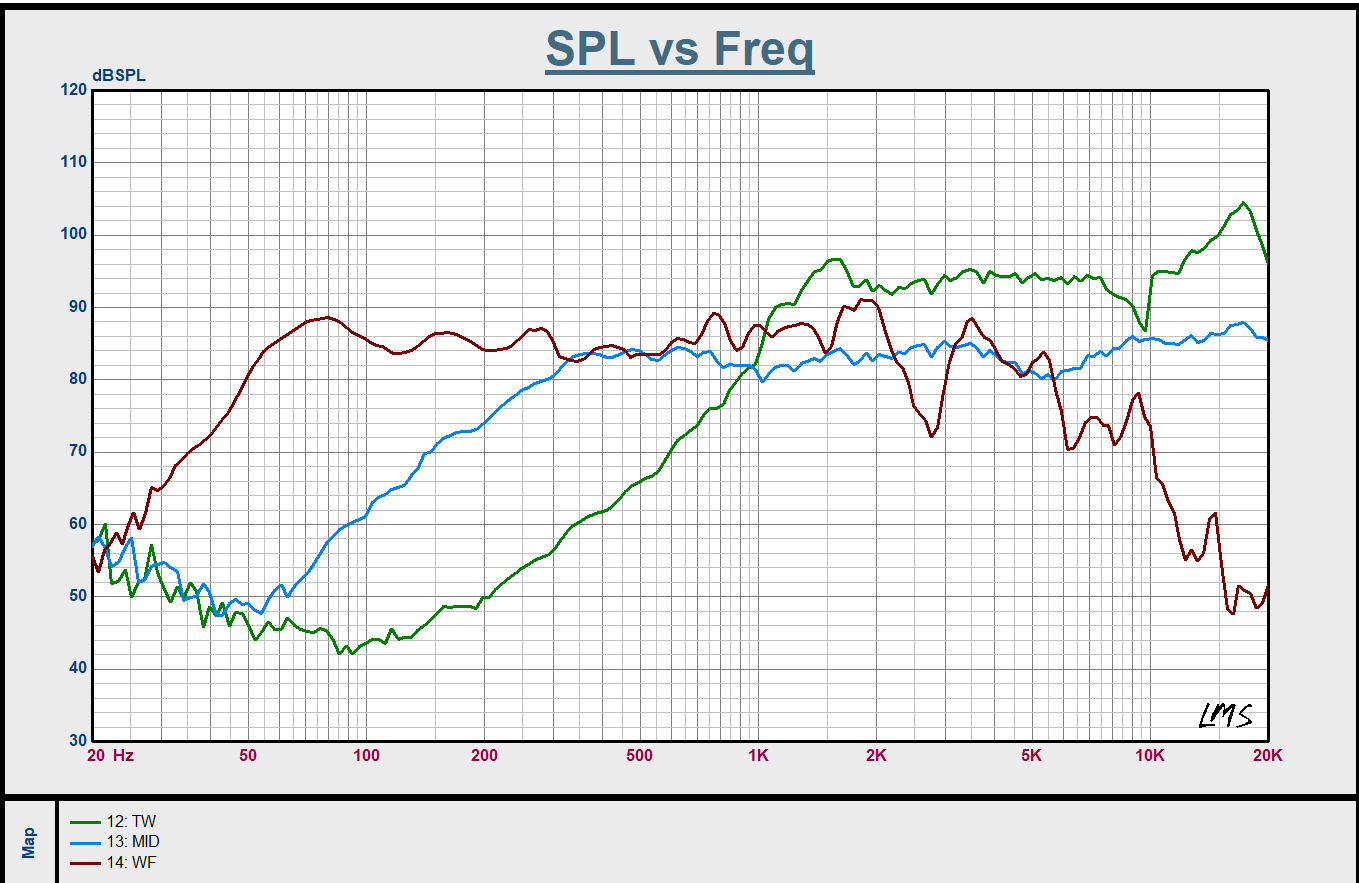

  • Frequency response:
    35Hz-25KHz
  • SPL:
    90dB
  • Impedance:
    4 ohm
  • Crossover Frequency:
    800Hz, 4000Hz
<
>
