V5 / V7 / V8
V5 / V7 / V8

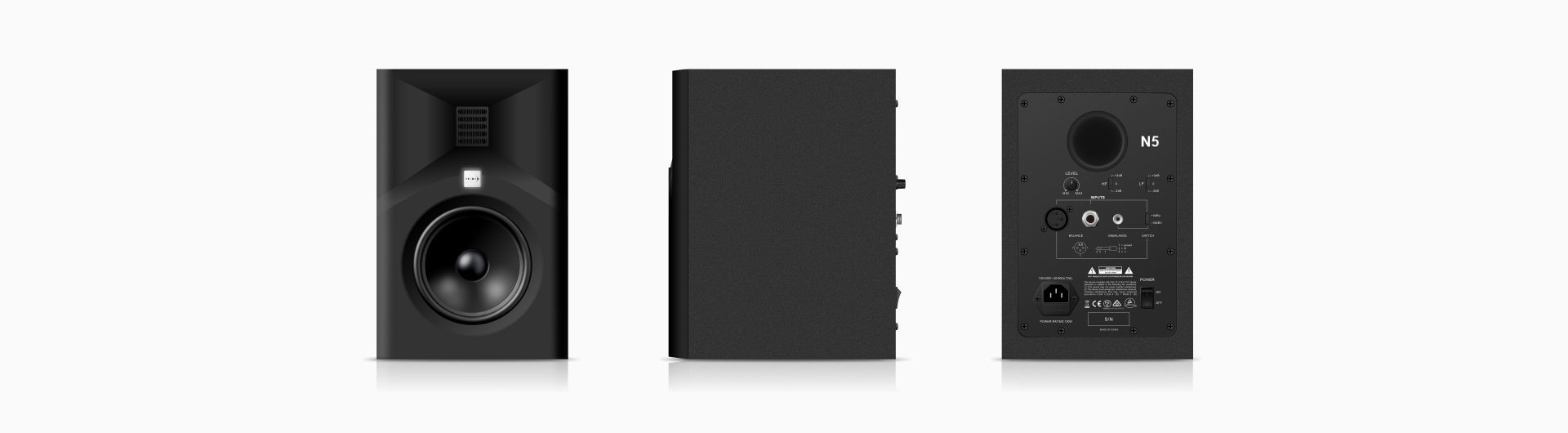

2 Way Bi-amplified Near-field Studio Monitor

Equipped with Air Motion Transformer, provides pristine and extended high-frequency response up to 25 kHz.

The AMT tweeter is fitted to a precision waveguide, provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot make the V5/V7/V8 perfectly suited for use in your studio for music production.


GALLERY
DETAILS


V5V7V8
Description:2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor2 Way Bi-amplified Near-field Studio Monitor

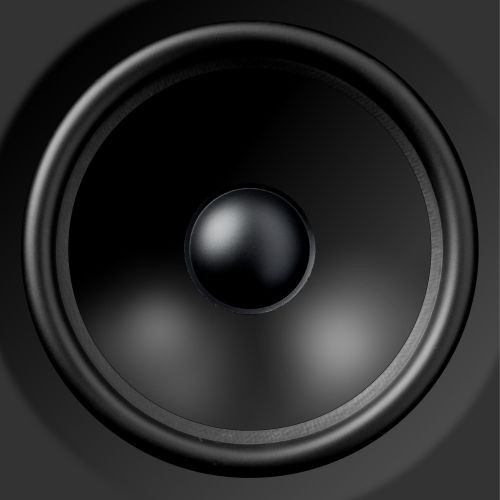

LF Driver:5.25" 7´´8´´
HF Driver:Air Motion TransformerAir Motion TransformerAir Motion Transformer
Frequency Response: 45 Hz - 25 kHz39 Hz - 25 kHz33 Hz - 25 kHz
Crossover Frequency:3.0KHz 2.6KHz 2.6KHz
LF Power AMP:50W Class D50W Class D70W Class D
HF Power AMP:20W Class D20W Class D20W Class D

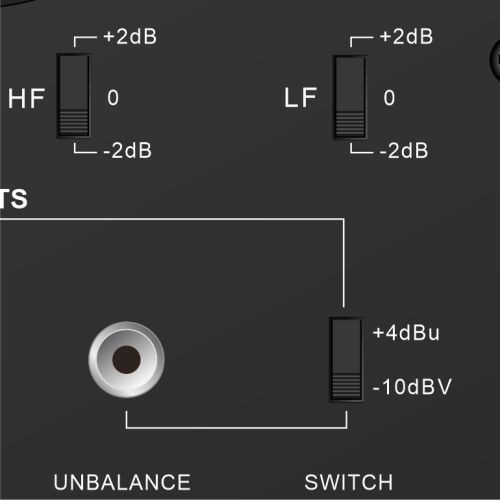

LF Trim:-2dB, 0dB, +2dB-2dB, 0dB, +2dB-2dB, 0dB, +2dB
HF Trim:-2dB, 0dB, +2dB-2dB, 0dB, +2dB-2dB, 0dB, +2dB
Sensitivity:+4dBu, -10dBv+4dBu, -10dBv+4dBu, -10dBv

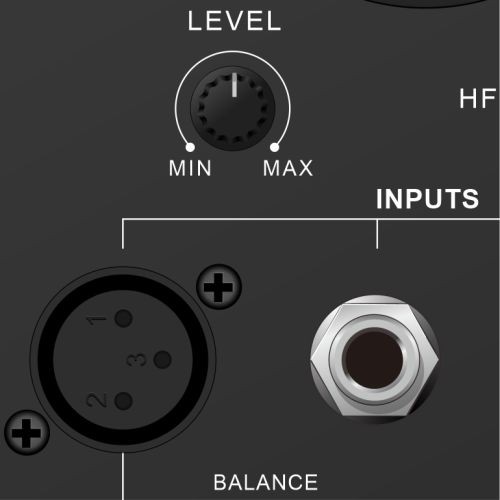

Input type:1 xXLR, 1xTRS, 1 x RCA1 xXLR, 1xTRS , 1xRCA1 x XLR, 1x TRS, 1xRCA

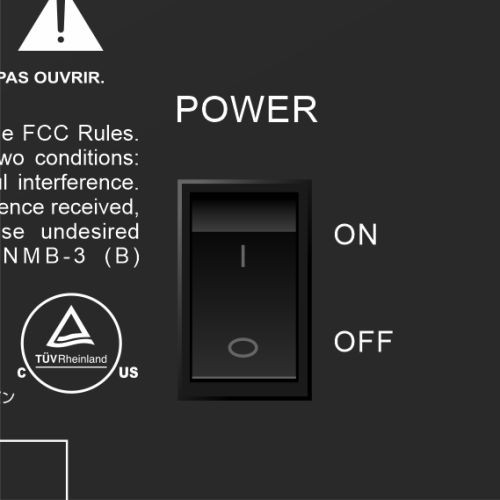

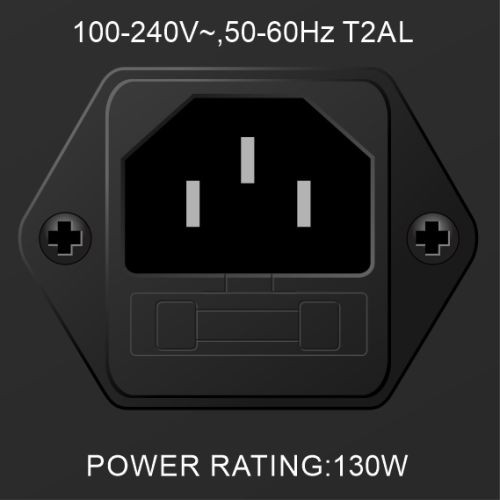

Voltage:100-240V~, 50/60Hz100-240V, 50/60Hz100-240V,50/60Hz
Measurements: W180xH288xD295mmW220xH335xD295mmW250xH398xD330mm
TECH SPECS
  • Description:
    2 Way Bi-amplified Near-field Studio Monitor
  • LF Driver:
    5.25'; 7' ; 8'
  • HF Driver:
    Air Motion Transformer
  • LF Trim:
    -2dB, 0dB, +2dB
  • HF Trim:
    -2dB, 0dB, +2dB
  • Sensitivity:
    +4dBu, -10dBv
  • Input type:
    1 x XLR, 1X TRS, 1 x RCA
  • Voltage:
    100-240V~, 50/60Hz
<
>
