ART-6
ART-6

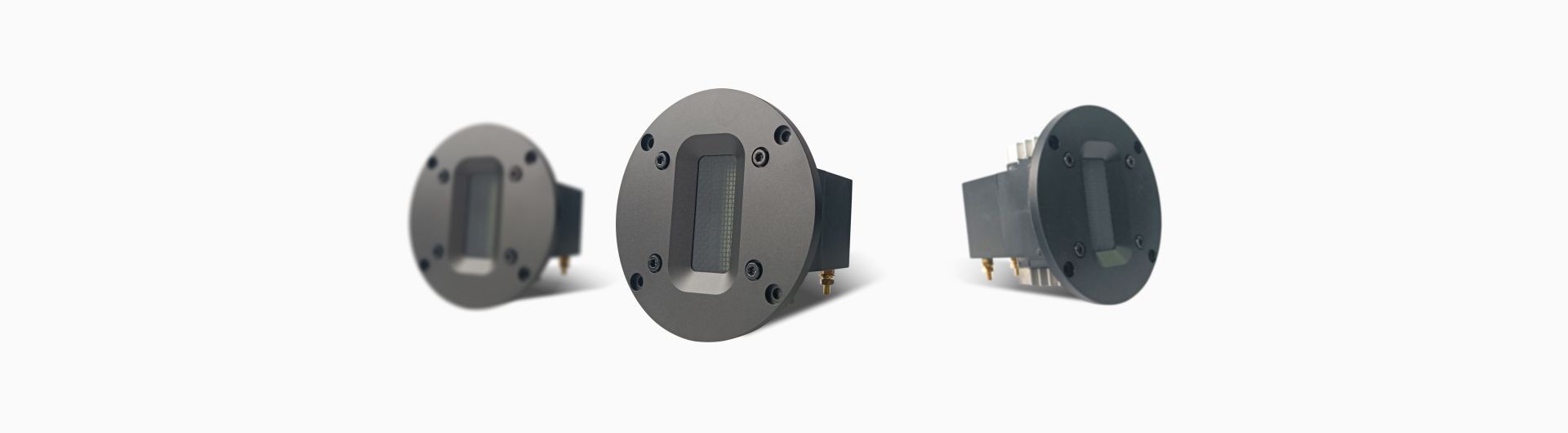

True Aluminum Ribbon Tweeter

Super strong Neodymium magnets

Build-in impedance conversion transformer

Effective from 1,200Hz upwards due to the large diaphragm area and low self-resonance.

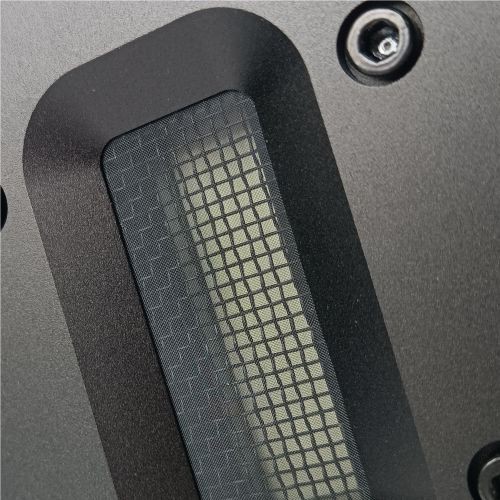

Thin enforced sandwich ribbon diaphragm guarantees a high degree of signal fidelity and broad frequency response.

Low distortion factor, good power-handling capabilities, high linear impedance and amplitude frequency response and the broad frequency response range.

Flat impedance from 1,200 to 40,000Hz


GALLERY
DETAILS

Parameter ART-6
Sensitivity 92dB±2.0dB
Power handling 15W nominal, 30W max

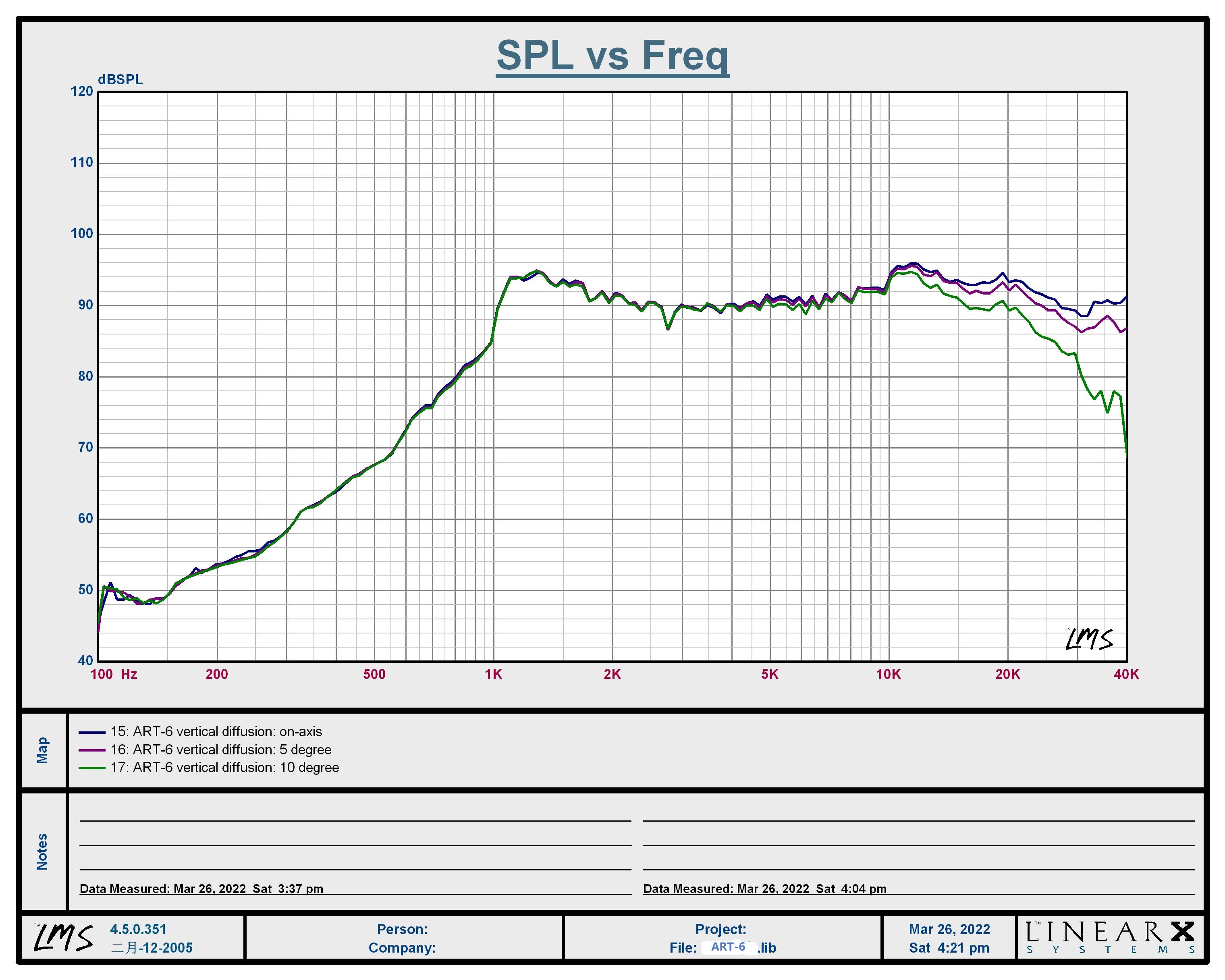

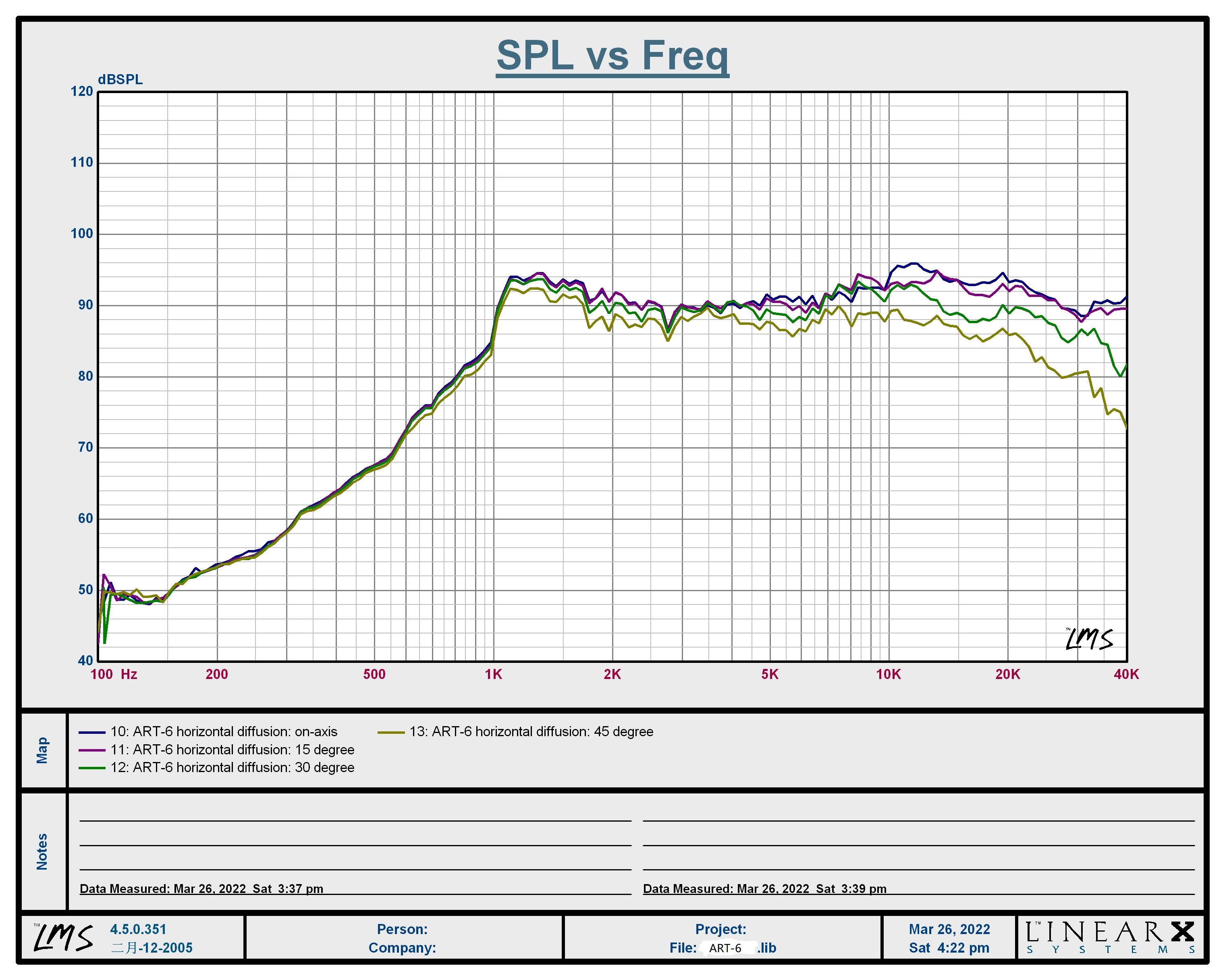

Frequency range 1,200-40,000Hz
Nominal impedance 8Ω (+0/-20%)
DCR 0.02 ohm
Ribbon dimension 12.5mmX46.5mmX0.015mm
Effective ribbon area 581 square millimeter
Front Panel Material Aluminum
Diaphragm Material Alumium foil
Magnet Material Neodymium
Recommended crossover 2,500Hz with 2-order
Net. Weight 700 gram

TECH SPECS
  • Sensitivity:
    92dB±2.0dB
  • Power handling:
    15W nominal, 30W max
  • Frequency range:
    1,200-40,000Hz
  • Nominal impedance:
    8Ω (+0/-20%)
  • DCR:
    0.02 ohm
  • Ribbon dimension:
    12.5mmX46.5mmX0.015mm
  • Effective ribbon area:
    581 square millimeter
  • Ribbon weight
    8 milligram
  • Gap flux:
    0.51 Tesla average
  • Gap height:
    13 millimeter
  • Recommended crossover
    2,500Hz with 2-order
  • Net. Weight
    700 gram
<
>
